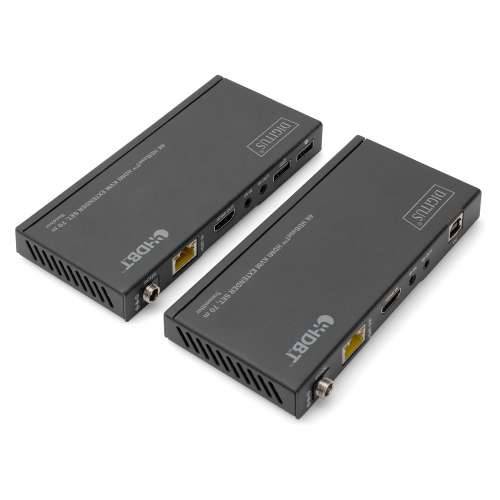

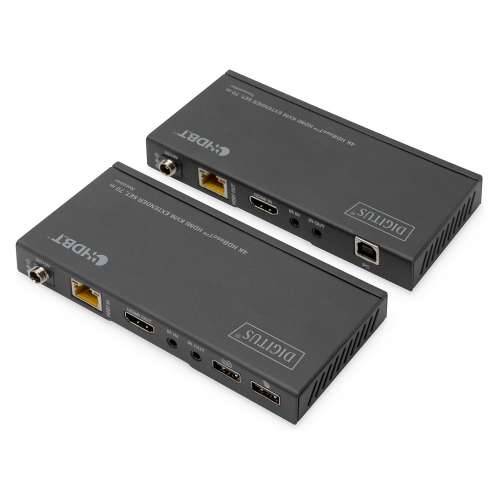

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m, Transmitter and Receiver, Wired, 70 m, Cat6, Cat6a, Cat7, Cat8, 3840 x 2160 pixels, Black. Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m. Type: Transmitter and receiver, Transmission technology: Wired, Maximum possible transmission distance: 70 m. Transmitter video connection type: HDMI. Receiver local video connection type: HDMI, Receiver local keyboard/mouse connection type: USB. USB port type: USB Type-A. Power supply output voltage: 12 V, AC adapter output current: 1 A, Power consumption (transmitter) (max.): 6.6 W
Podijelite:
Extends the HDMI signal up to 70 m and offers the possibility of controlling keyboard and mouse via USB on the receiver unit.
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a single network cable.
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply.
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bidirectional)
- Compact design for easy and flexible installations
- Robust metal housing
The HDBaseT™ HDMI KVM Extender Set enables signal transmission over long distances using a single copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to Proof-of-Concept (PoC), only one unit needs to be powered by an external power supply. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a single network cable.
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply.
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bidirectional)
- Compact design for easy and flexible installations
- Robust metal housing
The HDBaseT™ HDMI KVM Extender Set enables signal transmission over long distances using a single copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to Proof-of-Concept (PoC), only one unit needs to be powered by an external power supply. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.
Features
Type: Transmitter and receiver
Transmission technology: Wired
Maximum possible transmission distance: 70 m
Supported cable types: Cat6, Cat6a, Cat7, Cat8
Resolution (maximum, digital): 3840 x 2160 pixels
Product color: Black
Material: Metal
Plug & Play: Yes
LED indicators: Yes
Sender
Transmitter video connection type: HDMI
Number of RJ-45 ports (transmitter): 1
Recipient
Receiver local video connection type: HDMI
Receiver local keyboard/mouse connection type: USB
Number of RJ-45 ports (receiver): 1
Connections and interfaces
USB port type: USB Type-A
Number of RJ-45 ports: 2
Number of USB 1.1 ports: 2
energy
Power supply output voltage: 12 V
AC adapter output current: 1 A
Power consumption (transmitter) (max.): 6.6 W
Power consumption (receiver) (max.): 6.6 W
Weight and dimensions
Transmitter width: 14 cm
Transmitter depth: 6.5 cm
Transmitter height: 1.8 cm
Transmitter weight: 224 g
Receiver width: 14 cm
Receiver depth: 6.5 cm
Receiver height: 1.8 cm
Receiver weight: 227 g
Packaging data
Packaging width: 245 mm
Packaging depth: 185 mm
Packaging height: 75 mm
Package weight: 950 g
Scope of delivery
AC power adapter: Yes
Included cable: USB
Operating instructions: Yes
Mounting brackets included: Yes
Operating conditions
Operating temperature: 0 - 40 °C
Technical details
Maximum resolution: 1920 x 1080 pixels
Packaging volume: 3399.38 cm³
Logistics data
Country of origin: China
UK customs tariff code: 85176200
Commodity tariff number (HS): 84733080
Type: Transmitter and receiver
Transmission technology: Wired
Maximum possible transmission distance: 70 m
Supported cable types: Cat6, Cat6a, Cat7, Cat8
Resolution (maximum, digital): 3840 x 2160 pixels
Product color: Black
Material: Metal
Plug & Play: Yes
LED indicators: Yes
Sender
Transmitter video connection type: HDMI
Number of RJ-45 ports (transmitter): 1
Recipient
Receiver local video connection type: HDMI
Receiver local keyboard/mouse connection type: USB
Number of RJ-45 ports (receiver): 1
Connections and interfaces
USB port type: USB Type-A
Number of RJ-45 ports: 2
Number of USB 1.1 ports: 2
energy
Power supply output voltage: 12 V
AC adapter output current: 1 A
Power consumption (transmitter) (max.): 6.6 W
Power consumption (receiver) (max.): 6.6 W
Weight and dimensions
Transmitter width: 14 cm
Transmitter depth: 6.5 cm
Transmitter height: 1.8 cm
Transmitter weight: 224 g
Receiver width: 14 cm
Receiver depth: 6.5 cm
Receiver height: 1.8 cm
Receiver weight: 227 g
Packaging data
Packaging width: 245 mm
Packaging depth: 185 mm
Packaging height: 75 mm
Package weight: 950 g
Scope of delivery
AC power adapter: Yes
Included cable: USB
Operating instructions: Yes
Mounting brackets included: Yes
Operating conditions
Operating temperature: 0 - 40 °C
Technical details
Maximum resolution: 1920 x 1080 pixels
Packaging volume: 3399.38 cm³
Logistics data
Country of origin: China
UK customs tariff code: 85176200
Commodity tariff number (HS): 84733080
