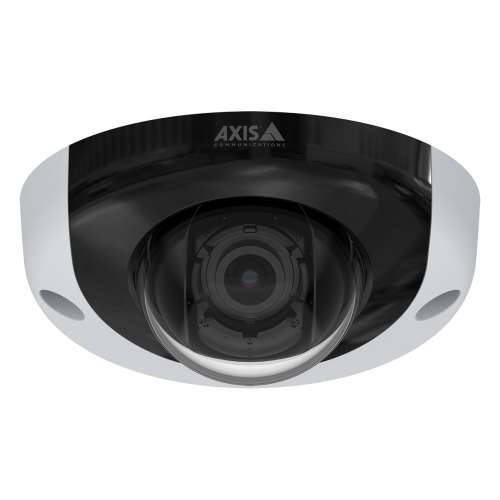

Axis 01932-021, IP security camera, wired, digital PTZ, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,..., ceiling mount, black, white. Axis 01932-021. Type: IP security camera, transmission technology: wired, PTZ modes: digital PTZ. Mounting type: ceiling, product color: black, white, form factor: dome. Minimum illumination: 0.01 lux, rotation angle: 350°, viewing angle (horizontal): 110°. Sensor type: CMOS, image sensor size: 25.4 / 2.9 mm (1 / 2.9“). Fixed focal length: 2.8 mm
Podijelite:
Specifically designed for in-vehicle surveillance, the AXIS P3935-LR complies with all relevant transportation industry standards, including EN50155, EN45545, and NFPA 130. Axis Lightfinder and Axis Forensic WDR ensure accurate color reproduction and detail in low light and even near-total darkness. The camera features integrated invisible IR LEDs (940 nm) for video surveillance in complete darkness. The rugged, vandal-resistant camera is housed in an IK10, IP66, and IP67-certified metal enclosure and includes an integrated microphone for audio monitoring and recording. Advanced security features prevent unauthorized access and protect your system.
Services
Type: IP security camera
Transmission technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267
design
Form factor: Dome
Mounting type: Ceiling
Product color: Black, White
Housing material: Aluminum
International protection rating (IP code): IP66, IP67
IK Code: IK10
Fog-proof: Yes
camera
Camera pan control: Yes
Camera pan control: Yes
Minimum illumination: 0.01 lux
Rotation angle: 350°
Viewing angle (horizontal): 110°
Viewing angle (vertical): 62°
Tilt angle range: 15 - 90°
Swivel range: -30 - 30°
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 2.9 mm (1 / 2.9“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Fixed focal length: 2.8 mm
Night vision
Night vision: Yes
Night vision range: 15 m
LED type: IR
Infrared wavelength: 940 nm
video
Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Up to 30 frames per second: 45 fps
Video streaming: Yes
Image quality adjustment: brightness, contrast, sharpness
Data protection masking: Yes
Text overlay: Yes
Image stabilizer: Yes
Bitrate control: Variable bitrate (VBR)
Audio
Audio system: 1-way
Supported audio formats: AAC-LC, G.711, LPCM, PCM
Sample rate: 48 kHz
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Number of users: 8 users
Quality of Service (QoS) Support: Yes
Streaming method: Multicasting
Storage medium
Integrated card reader: Yes
Flash memory: 512 MB
Connections and interfaces
Microphone input: Yes
Security
Password protection: Yes
Video motion detector: Yes
Active counterfeit alert: Yes
IP address filter: Yes
HTTPS encryption: Yes
energy
Power source: PoE
Power consumption (standard operation): 6.6 W
Power consumption (max.): 11.8 W
Operating conditions
Operating temperature: -40 - 55 °C
Storage temperature range: -40 - 65 °C
Relative humidity during operation: 10 - 95%
Weight and dimensions
Width: 110 mm
Depth: 110 mm
Height: 49.4 mm
Weight: 410 g
Scope of delivery
Number of cameras: 10
Operating instructions: Yes
Logistics data
Commodity tariff number (HS): 85258900
Type: IP security camera
Transmission technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267
design
Form factor: Dome
Mounting type: Ceiling
Product color: Black, White
Housing material: Aluminum
International protection rating (IP code): IP66, IP67
IK Code: IK10
Fog-proof: Yes
camera
Camera pan control: Yes
Camera pan control: Yes
Minimum illumination: 0.01 lux
Rotation angle: 350°
Viewing angle (horizontal): 110°
Viewing angle (vertical): 62°
Tilt angle range: 15 - 90°
Swivel range: -30 - 30°
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 2.9 mm (1 / 2.9“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Fixed focal length: 2.8 mm
Night vision
Night vision: Yes
Night vision range: 15 m
LED type: IR
Infrared wavelength: 940 nm
video
Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Up to 30 frames per second: 45 fps
Video streaming: Yes
Image quality adjustment: brightness, contrast, sharpness
Data protection masking: Yes
Text overlay: Yes
Image stabilizer: Yes
Bitrate control: Variable bitrate (VBR)
Audio
Audio system: 1-way
Supported audio formats: AAC-LC, G.711, LPCM, PCM
Sample rate: 48 kHz
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Number of users: 8 users
Quality of Service (QoS) Support: Yes
Streaming method: Multicasting
Storage medium
Integrated card reader: Yes
Flash memory: 512 MB
Connections and interfaces
Microphone input: Yes
Security
Password protection: Yes
Video motion detector: Yes
Active counterfeit alert: Yes
IP address filter: Yes
HTTPS encryption: Yes
energy
Power source: PoE
Power consumption (standard operation): 6.6 W
Power consumption (max.): 11.8 W
Operating conditions
Operating temperature: -40 - 55 °C
Storage temperature range: -40 - 65 °C
Relative humidity during operation: 10 - 95%
Weight and dimensions
Width: 110 mm
Depth: 110 mm
Height: 49.4 mm
Weight: 410 g
Scope of delivery
Number of cameras: 10
Operating instructions: Yes
Logistics data
Commodity tariff number (HS): 85258900
