Axis 01766-001, IP security camera, outdoor, wired, EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 BA,..., ceiling/wall, stainless steel. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired. Mounting type: Ceiling/wall, Product color: Stainless steel, Form factor: Dome. Viewing angle (horizontal): 125°, Viewing angle (vertical): 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Image sensor size: 25.4 / 2.5 mm (1 / 2.5“). Fixed focal length: 2.4 mm
Podijelite:

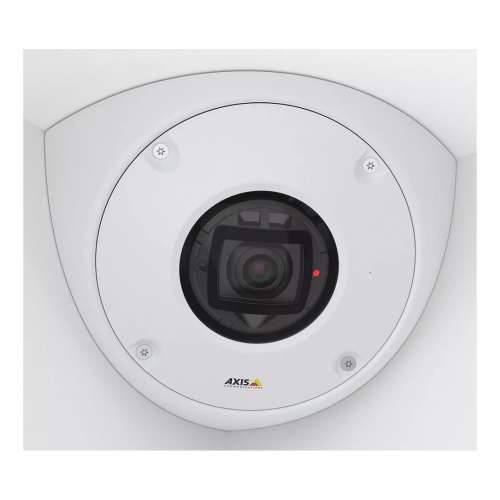

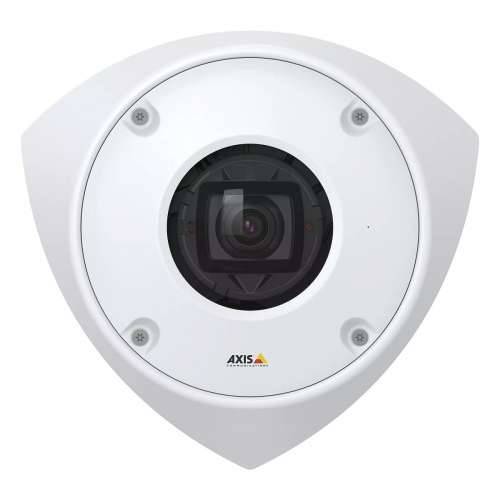

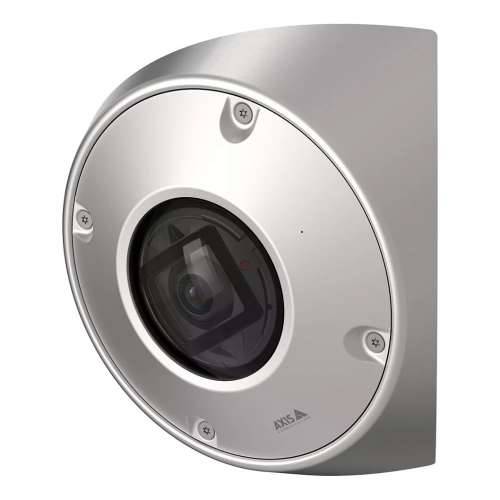

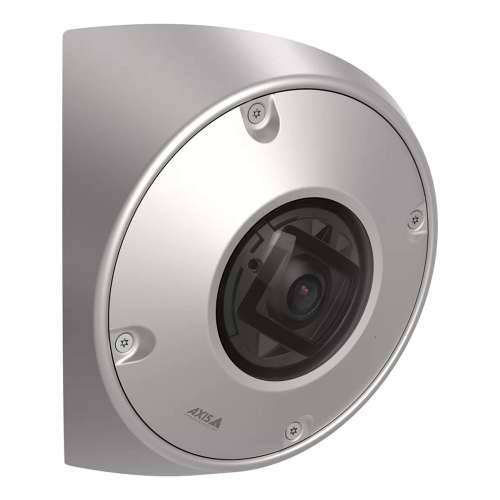

The AXIS Q9216-SLV is a compact and robust corner-mount camera with a secure, anchor-proof design (concealed, pull-out resistant mounting points) and 4 MP video quality. It offers 125° horizontal and 95° vertical coverage, eliminating blind spots. Thanks to invisible IR illumination, it is ideal for covert video surveillance in complete darkness. The housing is rated IK11/IP66 and features a swiveling, integrated microphone and an LED indicator. The camera offers a polygonal privacy mask, allowing for flexible coverage and helping to respect the privacy of occupants. Furthermore, signed firmware and a Trusted Platform Module (TPM and FIPS 140-2 Level 2 certified) help prevent unauthorized access and protect the system.
Services
Type: IP security camera
Supported positioning: Outdoors
Transmission technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cutoff filter: Yes
Certification: EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1,IEC/EN 61000-6-2, FCC 15 BA,ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471EN 50130-5 I, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4XNIST SP500-267
design
Form factor: Dome
Mounting type: Ceiling/Wall
Product color: Stainless steel
Housing material: Stainless steel
International protection rating (IP code): IP66, IP69, IP69K
IK Code: IK10+
camera
Minimum illumination: 0 lux
Viewing angle (horizontal): 125°
Viewing angle (vertical): 95°
Camera shutter speed: 1/32500 - 1/5 s
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 2.5 mm (1 / 2.5“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Fixed focus: Yes
Maximum aperture: 2
Fixed focal length: 2.4 mm
Night vision
Night vision: Yes
Night vision range: 15 m
LED type: IR
Infrared wavelength: 940 nm
video
Maximum resolution: 2304 x 1728 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 320 x 240, 2304 x 1728
Up to 30 frames per second: 30 fps
Video streaming: Yes
Image quality adjustment: brightness, contrast, color saturation, sharpness
Text overlay: Yes
Bitrate control: Variable bitrate (VBR)
Audio
Audio system: 2-way
Audio system - full duplex: Yes
Sample rate: 48 kHz
Built-in microphone: Yes
Language codec: G.711, G.726, OPUS
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
Wi-Fi: No
Bluetooth: No
Storage medium
Built-in HDD: No
Integrated card reader: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Storage capacity: 1024 MB
Connections and interfaces
Number of Ethernet LAN ports (RJ-45): 1
Microphone input: Yes
Number of HDMI ports: 1
Terminal block connection: Yes
Security
Password protection: Yes
Video motion detector: Yes
IP address filter: Yes
Supported security algorithms: EAP-TLS, FIPS 140-2
HTTPS encryption: Yes
energy
Power source: PoE
Power consumption (standard operation): 4.7 W
Power consumption (max.): 10.8 W
Weight and dimensions
Width: 209 mm
Depth: 176 mm
Height: 131 mm
Weight: 1.6 kg
Scope of delivery
Number of cameras: 1
Logistics data
Commodity tariff number (HS): 85258900
Type: IP security camera
Supported positioning: Outdoors
Transmission technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cutoff filter: Yes
Certification: EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1,IEC/EN 61000-6-2, FCC 15 BA,ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471EN 50130-5 I, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4XNIST SP500-267
design
Form factor: Dome
Mounting type: Ceiling/Wall
Product color: Stainless steel
Housing material: Stainless steel
International protection rating (IP code): IP66, IP69, IP69K
IK Code: IK10+
camera
Minimum illumination: 0 lux
Viewing angle (horizontal): 125°
Viewing angle (vertical): 95°
Camera shutter speed: 1/32500 - 1/5 s
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 2.5 mm (1 / 2.5“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Fixed focus: Yes
Maximum aperture: 2
Fixed focal length: 2.4 mm
Night vision
Night vision: Yes
Night vision range: 15 m
LED type: IR
Infrared wavelength: 940 nm
video
Maximum resolution: 2304 x 1728 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 320 x 240, 2304 x 1728
Up to 30 frames per second: 30 fps
Video streaming: Yes
Image quality adjustment: brightness, contrast, color saturation, sharpness
Text overlay: Yes
Bitrate control: Variable bitrate (VBR)
Audio
Audio system: 2-way
Audio system - full duplex: Yes
Sample rate: 48 kHz
Built-in microphone: Yes
Language codec: G.711, G.726, OPUS
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
Wi-Fi: No
Bluetooth: No
Storage medium
Built-in HDD: No
Integrated card reader: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Storage capacity: 1024 MB
Connections and interfaces
Number of Ethernet LAN ports (RJ-45): 1
Microphone input: Yes
Number of HDMI ports: 1
Terminal block connection: Yes
Security
Password protection: Yes
Video motion detector: Yes
IP address filter: Yes
Supported security algorithms: EAP-TLS, FIPS 140-2
HTTPS encryption: Yes
energy
Power source: PoE
Power consumption (standard operation): 4.7 W
Power consumption (max.): 10.8 W
Weight and dimensions
Width: 209 mm
Depth: 176 mm
Height: 131 mm
Weight: 1.6 kg
Scope of delivery
Number of cameras: 1
Logistics data
Commodity tariff number (HS): 85258900
