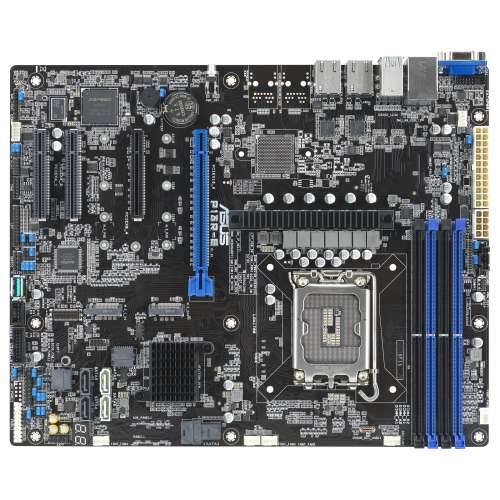

ASUS P13R-E (1700) (D) V2

Ready for PCIe 5.0
Faster storage, graphics, and networking – PCI Express® (PCIe®) 5.0 offers a bandwidth of 32 GT/s. The ASUS P13R-E supports both PCIe® 4.0 and 5.0 for improved LAN scalability and backward compatibility to meet the increasing demands of modern data centers.

Intel Xeon E-2400 / Intel Xeon 6300 processors
Designed for small and medium-sized enterprises (SMEs) and cloud service providers, these processors offer robust and secure solutions. They support up to eight cores and 16 threads with a maximum clock speed of 5.6 GHz and a TDP of 95 W, enabling fast data processing and responsive applications. Up to 128 GB of DDR5 memory with 4400 MT/s (Xeon E-2400) or 4800 MT/s (Xeon 6300) is supported, along with PCIe 5.0 – ensuring server-like 24/7 reliability and cost-effective performance for entry-level cloud services.

Two fast USB 3.2 Gen 2 ports
The ASUS P13R-E features two USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed ports offer data transfer rates of up to 10 Gbps for fast, efficient, and reliable file transfers. They are also backward compatible, ensuring seamless connectivity to a wide range of USB devices.

Double Ethernet bandwidth
With two integrated LAN ports based on the Intel I210-AT2 Ethernet controller, the P13R-E server motherboards offer business-grade connectivity. They support dense, high-performance, and low-latency networks for fast transfer of large files in data-intensive applications.

Versatile storage and SSD integration
The P13R-E offers eight SATA ports and four DDR5 ECC UDIMM memory slots with speeds up to 128 Gbps, as well as two M.2 22110 slots for faster operating system boot times. This integration acts as an accelerator for virtualized workloads and increases server productivity.

Comprehensive IT infrastructure management
The P13R-E features an integrated iKVM module and can be optionally equipped with the ASUS Control Center. It offers comprehensive out-of-band and in-band management capabilities, specifically designed for small and medium-sized businesses. The integrated ASUS ASMB11 iKVM module supports remote BIOS updates, fan control, independent KVMs, video recording, and BSOD capture, enabling 24/7 remote monitoring and diagnostics. These functions remain accessible even when the operating system is down or powered off, via a user-friendly, web-based graphical interface compatible with all major browsers. The ASUS Control Center (ACC) further enhances management, centralizing monitoring and control for ASUS products such as servers, workstations, and digital signage. ACC enables remote BIOS updates, system monitoring via mobile devices, and simplified server management through one-click software updates and distribution.
