Asrock X570D4U, Socket AM4, DDR4-SDRAM, 32 GB, DIMM, 1.2 V. Processor socket: Socket AM4, Supported processor slots: Socket AM4. Supported memory: DDR4-SDRAM, Maximum RAM: 32 GB, Memory type: DIMM. Supported storage interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Graphics card family: ASPEED, Graphics card: AST2500. Ethernet interface type: Gigabit Ethernet, LAN controllers: Intel I210, Realtek RTL8211E
Podijelite:
processor
Processor socket: Socket AM4
Supported processor slots: Socket AM4
memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory type: DIMM
Storage voltage: 1.2 V
ECC compatibility: Non-ECC
Supported memory speed: 2666, 3200 MHz
Maximum RAM: 32 GB
Feature: Unbuffered memory
Memory controller
Supported storage drive interfaces: M.2, SATA III
Feature: RAID support
RAID Level: 0, 1, 10
graphic
Graphics card family: ASPEED
Graphics card: AST2500
Internal I/O ports
SATA III ports: 12
SATA ports: 12
Feature: ATX power connector (24-pin)
Feature: Chassis Intrusion Plug
Feature: TPM connection
Feature: 12V power connection

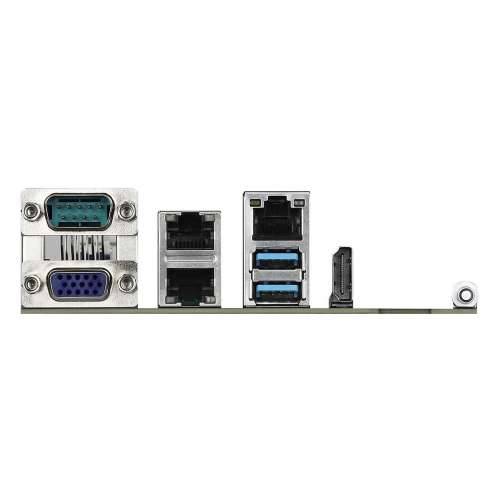

I/O ports on the back
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 3
Number of VGA (D-Sub) ports: 1
Number of HDMI ports: 1
network
Feature: Ethernet/LAN
Ethernet interface type: Gigabit Ethernet
LAN Controller: Intel I210, Realtek RTL8211E
Features
Motherboard chipset: AMD X570
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Expansion slots
PCI-Express x1 slots: 1
PCI-Express x8 slots: 1
PCI Express x16 slots (Gen 4.x): 1
BIOS
BIOS type: UEFI AMI
ACPI version: 2.0
Operating conditions
Storage temperature range: -40 - 70 °C
Operating temperature: 10 - 35 °C
Logistics data
Commodity tariff number (HS): 84733020
Weight and dimensions
Width: 244 mm
Depth: 244 mm
Processor socket: Socket AM4
Supported processor slots: Socket AM4
memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory type: DIMM
Storage voltage: 1.2 V
ECC compatibility: Non-ECC
Supported memory speed: 2666, 3200 MHz
Maximum RAM: 32 GB
Feature: Unbuffered memory
Memory controller
Supported storage drive interfaces: M.2, SATA III
Feature: RAID support
RAID Level: 0, 1, 10
graphic
Graphics card family: ASPEED
Graphics card: AST2500
Internal I/O ports
SATA III ports: 12
SATA ports: 12
Feature: ATX power connector (24-pin)
Feature: Chassis Intrusion Plug
Feature: TPM connection
Feature: 12V power connection
I/O ports on the back
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 3
Number of VGA (D-Sub) ports: 1
Number of HDMI ports: 1
network
Feature: Ethernet/LAN
Ethernet interface type: Gigabit Ethernet
LAN Controller: Intel I210, Realtek RTL8211E
Features
Motherboard chipset: AMD X570
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Expansion slots
PCI-Express x1 slots: 1
PCI-Express x8 slots: 1
PCI Express x16 slots (Gen 4.x): 1
BIOS
BIOS type: UEFI AMI
ACPI version: 2.0
Operating conditions
Storage temperature range: -40 - 70 °C
Operating temperature: 10 - 35 °C
Logistics data
Commodity tariff number (HS): 84733020
Weight and dimensions
Width: 244 mm
Depth: 244 mm
