750W Seasonic FOCUS-GX-750-V4-WHITE ATX 3.1 80+ Gold

energy
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Combined current (+3.3V): 100 W
Combined current (+12V): 744 W
Combined current (+5V): 100 W
Combined current (-12V): 3.6 W
Combined current (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 62 A
Max output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 3 A
Energy protection features: overcurrent, overload, overvoltage, overheating, short circuit, undervoltage

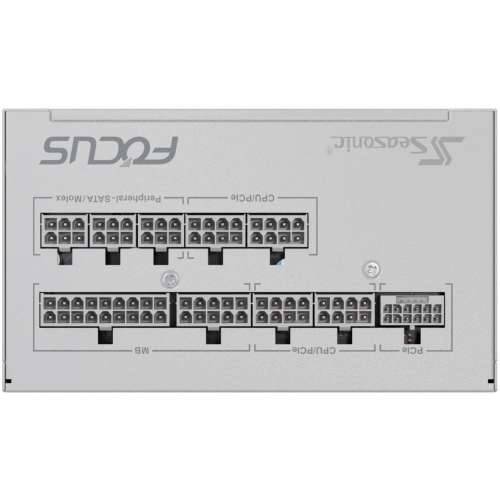

Connections and interfaces
Motherboard connector: 24-pin ATX
Motherboard power cable length: 61 cm
SATA power cable length: 950 mm
Peripheral (Molex) power cable length: 690 mm
Number of PCI Express power connectors 6+2pin: 2
PCI Express power connectors (12+4 pin) Cable length: 700 mm
PCI Express power cable length: 75 cm
Feature: CPU connector (4+4 pin)
CPU performance Cable length: 70 cm
Feature: PCI Express connector
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Feature: Sleep mode
Bearing type: FDB
Mean time between failures (MTBF): 100,000 h
design
Product color: white
Cooling: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan
Feature: On/Off switch
Operating conditions
Operating temperature: 0 - 50 °C

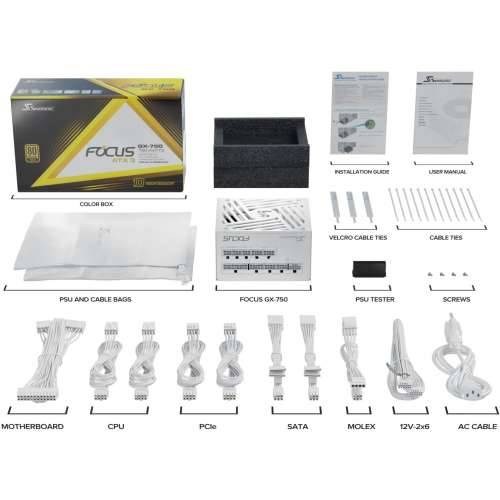

Scope of delivery
Feature: Cable ties included
Certificates
Property: Conformity of Waste Electrical and Electronic Equipment (WEEE)
Certificates of conformity: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus
Certification: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Technical details
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, ErP
