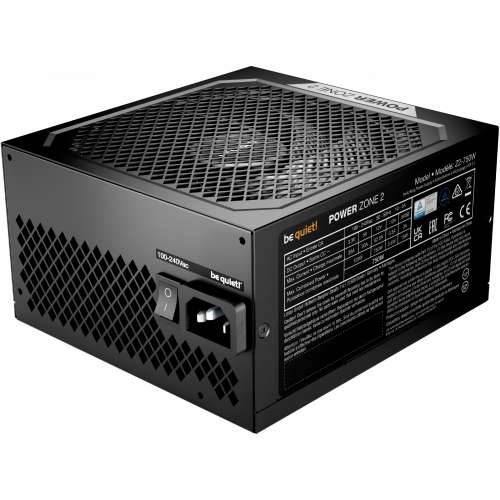

be quiet! Power Zone 2 750 Watt power supply 80+ ATX 3.1 PCIe 5.1 modular

energy
Total power: 750 W
peak current: 820 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (at 110V): 10 A
Maximum input current (at 220V): 5 A
Power factor: 0.98
Number of +12V rail(s): 1
Combined current (+3.3V): 120 W
Combined power (+12V): 750 W
Combined current (+5V): 120 W
Combined current (-12V): 3.6 W
Combined current (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 3 A
Hold time: 24.5 ms
Efficiency: 92.5%
Energy protection features: overcurrent, overload, overvoltage, overheat, short circuit, surge & inrush, undervoltage
connections and interfaces
Motherboard connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 6
SATA power cable length: 550,700,850,1000 mm
Number of Molex connectors 4pin: 1
Peripheral (Molex) power cable length: 850 mm
Feature: EPS power connector (8-pin)
Number of PCI Express power connectors 6+2pin: 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 60 cm
CPU P4 connector (4-pin): 1
Feature: CPU connector (4+4 pin)
CPU performance Cable length: 70 cm
Cable type: Fully modular
services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 15.8 dB
Stock type: Rifle
Mean time between failures (MTBF): 100000 h
design
Product color: Black
Cooling: Active
Fan diameter: 14 cm
Number of fans: 1 fan
Feature: On/Off switch
operating conditions
Operating temperature: 0 - 40 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 0 - 85%
Humidity during storage: 0 - 95%
certificates
Property: Conformity of Waste Electrical and Electronic Equipment (WEEE)
Conformity certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
weight and dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
packaging data
Feature: Operating Instructions
Languages of the manual: German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging width: 248 mm
Packaging depth: 328 mm
Packaging height: 102 mm
Package weight: 3.21 kg
Packaging type: Box
Technical Details
Sustainability certificates: ENERGY STAR, ErP, Triman
logistics data
Shipping box length: 65.1 cm
Shipping box width: 28.2 cm
Shipping box height: 34.6 cm
Quantity per shipping carton: 6 pieces
Weight (inner) shipping carton: 19.3 kg
Other functions
Feature: Screws included
Feature: Cable ties included
