The NETGEAR M4300-52G-PoE+ is a versatile, high-performance switch designed to meet the demands of modern enterprise networks. With 52 ports, including 48 PoE+ ports and 4 10G connections, it offers extensive connectivity options for a variety of devices. Advanced Layer 3 switching capabilities ensure efficient traffic management, while comprehensive security features protect against threats. The switchs stackable design and support for dual internal power supplies provide scalability and reliability, making it an ideal solution for businesses looking to optimize their network infrastructure.
Management functions
Switch type: Managed
Switch level: L2/L3/L4
Feature: Quality of Service (QoS) Support
Feature: Web-based management
Feature: ARP inspection
Connections and interfaces
Number of base-switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP+ module slots: 2
Optical cable connector: SFP+
Console port: RJ-45/Mini-USB
Number of USB 2.0 ports: 1
network
Network standard: IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az
Feature: 10G support
Supported cable types: Cat5, Cat5e, Cat6, Cat7, Fiber
Feature: Port Mirroring
Property: IP routing
Feature: Support data flow control
Property: Link Aggregation
Property: Rate Limiting
Feature: Auto MDI/MDI-X
Property: Spanning Tree Protocol
Feature: Auto-scanning
Feature: Auto-negotiation function
Feature: VLAN support
Virtual LAN features: Private VLAN
Number of VLANs: 4000
Optical fiber
Ethernet cable cabling technology: 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Data transfer
Routing/switching capacity: 128 Gbit/s
Transfer rate: 357 Mpps
MAC address table: 16000 entries
Property: Store-and-Forward
Number of static routes: 64
Feature: Jumbo Frames Support
Jumbo frames: 9000
Data packet buffer memory: 16 MB
Security
DHCP functions: DHCP server, DHCP client
Property: Access Control List
Property: IGMP snooping
Supported security algorithms: HTTPS, SNMP, SSH
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Multicast functions
Feature: Multicast support
Number of filtered multicast groups: 4000
design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product color: Black
LED displays: activity, power, speed
Safety: CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility: CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Services
Feature: Built-in processor
Processor clock frequency: 800 MHz
Storage capacity: 1024 MB
Flash memory: 256 MB
Noise level: 39.8 dB
Mean time between failures (MTBF): 673207 h
energy

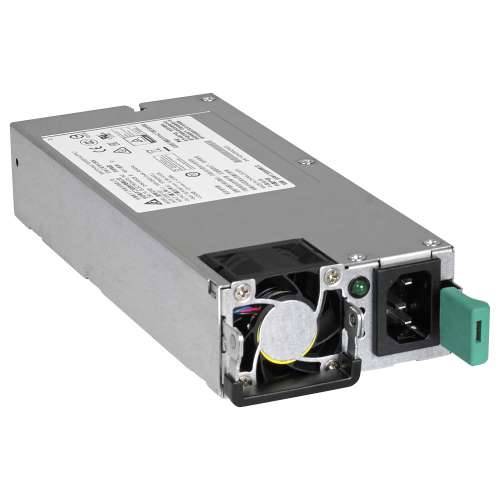

Feature: Power supply included
Feature: Support for redundant power supply
Number of power supply units: 1
AC input voltage: 110 - 220 V
Power consumption (max.): 865 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Number of Power over Ethernet plus (PoE+) ports: 48
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE): 480 W
Operating conditions
Operating temperature: 0 - 50 °C
Storage temperature range: -20 - 70 °C
Relative humidity during operation: 0 - 90%
Storage humidity: 0 - 95%
Operating altitude: 0 - 3000 m
Storage altitude: 0 - 3000 m
Heat dissipation: 207913 BTU/h
Weight and dimensions
Width: 440 mm
Depth: 388 mm
Height: 44 mm
Weight: 6.67 kg
Scope of delivery
Included cables: AC, LAN (RJ-45), Mini-USB
Feature: User Manual
Feature: Rack mounting kit
Packaging data
Feature: Rubber feet
Property: Resource CD
Logistics data
Tariff number (HS): 85176990
