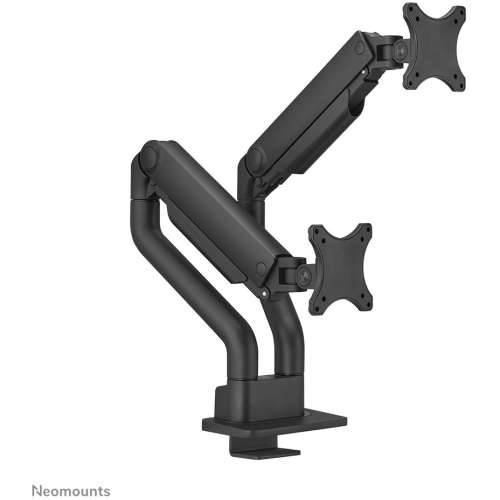

The Neomounts DS70S-950BL2 NEXT One is a full-motion desk mount for two screens up to 35. The DS70S-950BL2 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment and depth adjustment, to create the perfect working position. The DS70S-950BL2 features the nifty 180° stop mechanism that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables. The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. The monitor arm is equipped with a quick-release VESA system and comes with both a top fix clamp and grommet for quick and easy installation.
Assembly
Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17“)
Number of displays supported: 2
Maximum weight capacity (per monitor): 18 kg
Maximum weight capacity (per curved/ultrawide display): 15 kg
Maximum screen size: 88.9 cm (35“)
Mounting: Clamp/Feedthrough
Mounting type: Table/Bench
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100.75 x 75 mm
Table thickness (min.): 1 cm
Table thickness (max.): 5.5 cm
Clamp mounting, table thickness (max.): 5 cm
Nozzle holder, table thickness (max.): 5.5 cm
Distance to wall (min): 11.9 cm
Distance to wall (max): 65.6 cm
ergonomics
Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment rate: 202 - 522 mm
Feature: Adjustable depth
Depth adjustment range: 88 - 625 mm
Width adjustment: 115.9 cm
Feature: Tilt adjustment
Tilt angle range: -90 - 90°
Feature: Swivel
Swivel angle range: -90 - 90°
Feature: Rotate
Rotation angle: 360°
Pivot angle: -180 - 180°
Number of arms: 2
Feature: Improved cable management
design
Housing material: Aluminum
Product color: Black
Feature: Easy installation
Weight and dimensions
Width: 186 mm
Depth: 656 mm
Height: 579 mm
Weight: 6.98 kg
Packaging data
Packaging width: 410 mm
Packaging depth: 124 mm
Packaging height: 496 mm
Net weight of packaging: 7.8 kg
Package weight: 7.8 kg
Packaging type: Box
Other functions
Minimum weight: 1 kg
Wide adjustment range: 0 - 1159 mm
Warranty period: 10 years
Logistics data
Shipping carton width: 260 mm
Length of the shipping carton: 320 mm
Shipping carton height: 505 mm
Shipping carton weight: 16.2 kg
Number of products per shipping carton: 2 pieces
Country of origin: China
Net weight of main carton: 13.9 kg
Commodity tariff number (HS): 7616991099
Number per Euro pallet: 48 pieces
