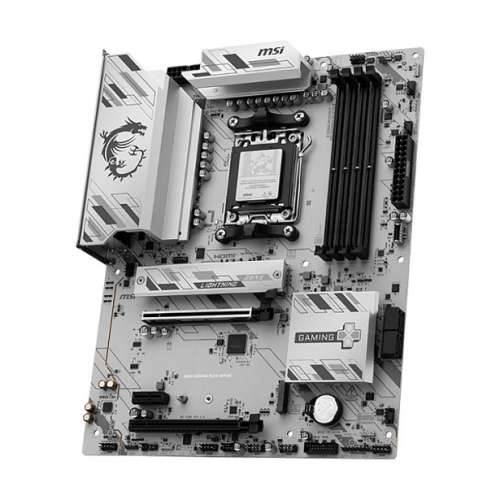

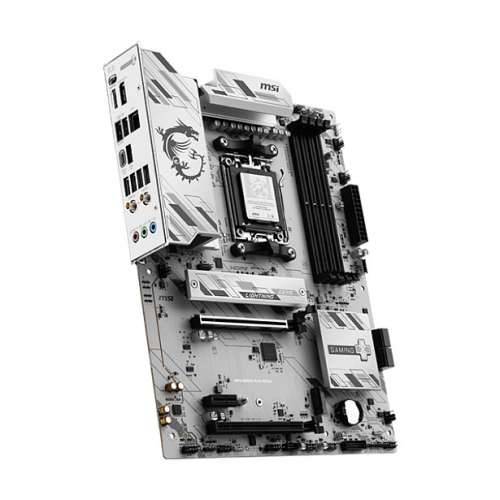

The MSI B850 GAMING PLUS WIFI6E motherboard combines advanced technology with robust features to support high-performance gaming and computing. With compatibility for Ryzen processors and support for DDR5 SDRAM, this motherboard is designed to handle demanding applications with ease. It supports a wide range of RAM speeds up to 8200 MT/s when overclocked, ensuring optimal performance for both gamers and professionals. Equipped with various connectivity options, including multiple USB 3.2 Gen 2 ports and 2.5 Gigabit Ethernet, it ensures fast data transfer and reliable networking. Enhanced audio features, supported by the Realtek ALC897 codec, deliver an immersive sound experience, ideal for gaming or multimedia consumption. Its MSI Mystic Light and Steel Armor offer aesthetic appeal and durability, making it a solid choice for any build.
processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor slots: Socket AM5
Maximum internal storage supported by the processor: 256 GB
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4800, 5600, 6400, 8200 MHz
Maximum supported memory clock speed: 8200 MHz
Maximum RAM: 256 GB
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 7
RAID support: Yes
RAID Level: 0, 1, 5, 10
graphic
Built-in graphics adapter: No
Internal I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
S/PDIF output connector: Yes
CPU fan connector: Yes
Number of CPU fan connectors: 4
Number of water pump connections: 1
RGB LED header: Yes
Number of RGB LED pin headers: 3

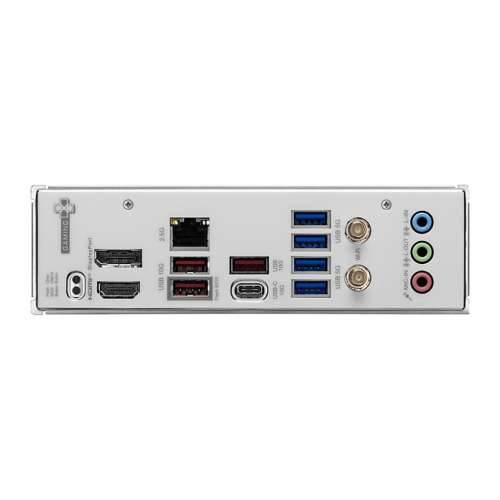

I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connectors: 1
DisplayPort version: 1.2
network
Ethernet/LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125D
Wi-Fi: Yes
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Audio channels: 7.1 channels
Product color: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 11 x64
Expansion slots
PCI-Express x16 (Gen 3.x) slots: 2
PCI Express x16 slots (Gen 4.x): 1
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 3
1. M.2 largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 largest key size: 22110
2. M.2 highest PCI Express generation: 4.0
3. M.2 largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
ACPI version: 6.5
System Administration BIOS (SMBIOS) Version: 3.7
Weight and dimensions
Width: 243.8 mm
Depth: 304.8 mm
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor slots: Socket AM5
Maximum internal storage supported by the processor: 256 GB
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4800, 5600, 6400, 8200 MHz
Maximum supported memory clock speed: 8200 MHz
Maximum RAM: 256 GB
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 7
RAID support: Yes
RAID Level: 0, 1, 5, 10
graphic
Built-in graphics adapter: No
Internal I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
S/PDIF output connector: Yes
CPU fan connector: Yes
Number of CPU fan connectors: 4
Number of water pump connections: 1
RGB LED header: Yes
Number of RGB LED pin headers: 3
I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connectors: 1
DisplayPort version: 1.2
network
Ethernet/LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125D
Wi-Fi: Yes
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Audio channels: 7.1 channels
Product color: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 11 x64
Expansion slots
PCI-Express x16 (Gen 3.x) slots: 2
PCI Express x16 slots (Gen 4.x): 1
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 3
1. M.2 largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 largest key size: 22110
2. M.2 highest PCI Express generation: 4.0
3. M.2 largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
ACPI version: 6.5
System Administration BIOS (SMBIOS) Version: 3.7
Weight and dimensions
Width: 243.8 mm
Depth: 304.8 mm
