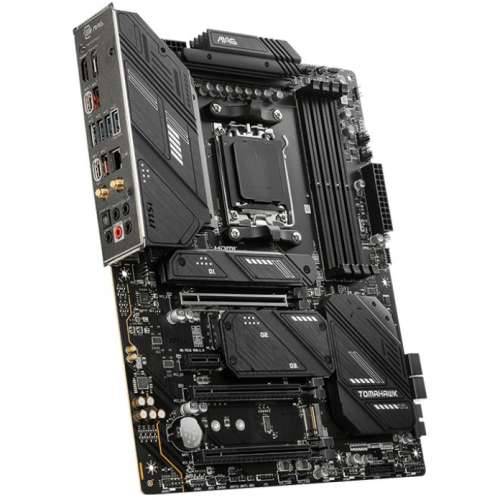

• ATX mainboard with socket AMD AM5 for AMD RYZEN 7000 series CPU • AMD X670 chipset, no graphics • 128 GB max. RAM, DDR5 up to 6600MHz • 1x DisplayPort, 1x HDMI, 5x USB 3.2, 8x USB 3.0, 4x USB 2.0, 3xUSB-C, • RGB lighting
processor
Processor manufacturer: AMD
Processor socket: socket AM5
Compatible processors: AMD Ryzen™ 7
AMD Opteron Series: 7000
Maximum number of SMP processors: 1
Supported processor slots: Socket AM5
Storage
Supported memory: DDR5-SDRAM
Number of memory slots: 4
RAM memory maximum: 128 GB
Memory Channels: Dual Channel
Without ECC: Yes
Supported memory speed: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600MHz
Supported memory clock speed (max): 6600 MHz
Storage controller
Supported storage drive interfaces: M.2, SATA
RAID support: Yes
RAID levels: 0, 1, 10
Internal I/O ports
Number of USB 2.0 interfaces: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Ports: 1
SATA III ports: 4
Front panel audio plug: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Chassis Intrusion Connector: Yes
TPM connector: Yes
RGB LED header: Yes
Rear I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
USB 3.2 Gen 2x2 Type-C Number of ports: 1
HDMI version: 2.1
Number of DisplayPort connections: 1
DisplayPorts version: 1.4
Microphone input: Yes
S/PDIF output: Yes
network
WiFi: Yes
Built-in Ethernet port: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125-BG
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3
characteristics
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD X670
Audio Channels: 7.1 channels
Audio chip: Realtek ALC1200
Power source: ATX
Supports Windows operating systems: Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) connectors: 1
PCI Express x16 slots (Gen 4.x): 2
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 4
Weight and dimensions
Width: 243.8mm
Depth: 304.8mm
Processor manufacturer: AMD
Processor socket: socket AM5
Compatible processors: AMD Ryzen™ 7
AMD Opteron Series: 7000
Maximum number of SMP processors: 1
Supported processor slots: Socket AM5
Storage
Supported memory: DDR5-SDRAM
Number of memory slots: 4
RAM memory maximum: 128 GB
Memory Channels: Dual Channel
Without ECC: Yes
Supported memory speed: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600MHz
Supported memory clock speed (max): 6600 MHz
Storage controller
Supported storage drive interfaces: M.2, SATA
RAID support: Yes
RAID levels: 0, 1, 10
Internal I/O ports
Number of USB 2.0 interfaces: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Ports: 1
SATA III ports: 4
Front panel audio plug: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Chassis Intrusion Connector: Yes
TPM connector: Yes
RGB LED header: Yes
Rear I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
USB 3.2 Gen 2x2 Type-C Number of ports: 1
HDMI version: 2.1
Number of DisplayPort connections: 1
DisplayPorts version: 1.4
Microphone input: Yes
S/PDIF output: Yes
network
WiFi: Yes
Built-in Ethernet port: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125-BG
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3
characteristics
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD X670
Audio Channels: 7.1 channels
Audio chip: Realtek ALC1200
Power source: ATX
Supports Windows operating systems: Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) connectors: 1
PCI Express x16 slots (Gen 4.x): 2
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 4
Weight and dimensions
Width: 243.8mm
Depth: 304.8mm
