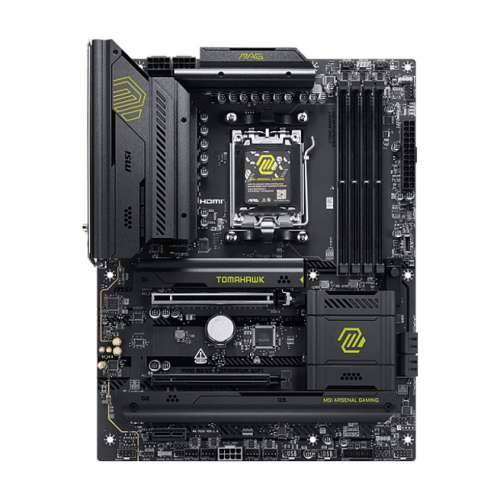

MB MSI AMD AM5 MAG B850 TOMAHAWK WIFI

processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor slots: Socket AM5
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4800, 5600, 8200 MHz
Maximum supported memory clock speed: 8200 MHz
Maximum RAM: 256 GB
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 7
Feature: RAID support
RAID Level: 0, 1, 10
Internal I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
Feature: CPU fan connector
Number of CPU fan connectors: 6
Number of water pump connections: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

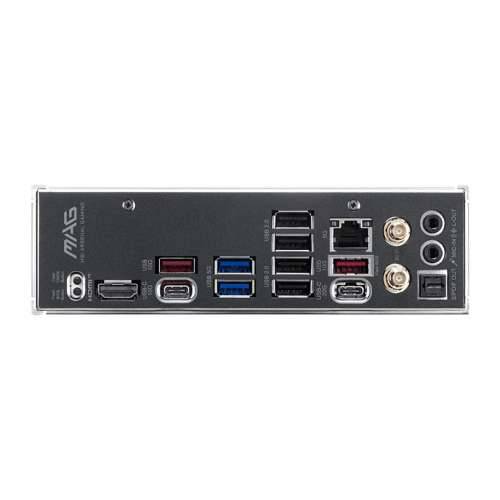

I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
USB 3.2 Gen 2x2 Type-C Number of ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
network
Feature: Ethernet/LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top WLAN standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC4080
Audio channels: 7.1 channels
Product color: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 11 x64
Expansion slots
PCI-Express x16 (Gen 3.x) slots: 1
PCI Express x16 slots (Gen 4.x): 1
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 3
1. M.2 largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 largest key size: 22110
2. M.2 highest PCI Express generation: 4.0
3. M.2 largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI
BIOS memory size: 512 Mbit
ACPI version: 6.5
System Administration BIOS (SMBIOS) Version: 3.7
Weight and dimensions
Width: 243.8 mm
Depth: 304.8 mm
