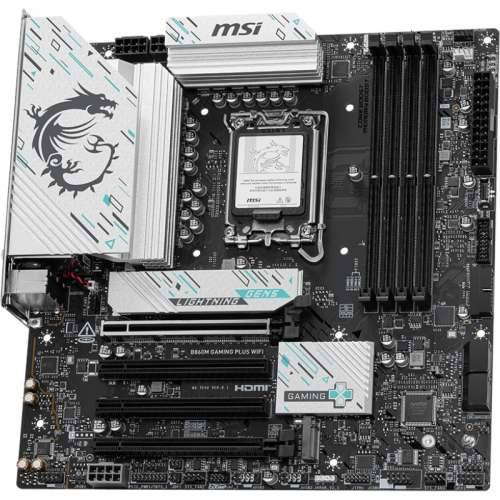

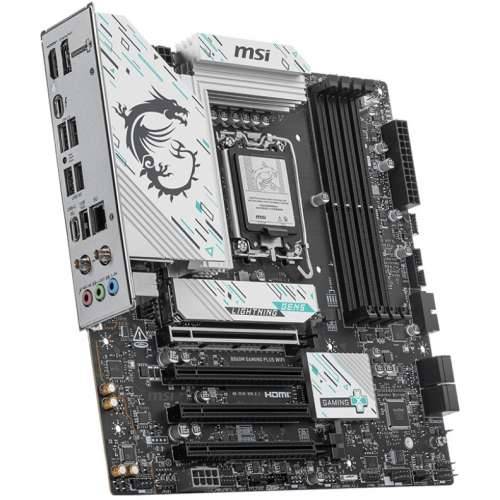

MSI B860M GAMING PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Podijelite:
processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processors: Intel Core Ultra (Series 2)
Supported processor slots: LGA 1851
Maximum internal storage supported by the processor: 256 GB
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4800, 6400, 8800 MHz
Maximum supported memory clock speed: 8800 MHz
Maximum RAM: 256 GB
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 7
RAID support: Yes
RAID Level: 0, 1, 5, 10
Internal I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of water pump connections: 1
RGB LED header: Yes
Number of RGB LED pin headers: 3
I/O ports on the back
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
network
Ethernet/LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Top WLAN standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WiFi controller model: Killer Wi-Fi 7 1750x
Bluetooth: Yes
Bluetooth version: 5.4
Features
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Audio channels: 7.1 channels
Product color: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 11 x64
Expansion slots
PCI Express x16 slots (Gen 4.x): 3
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 3
1. M.2 largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
3. M.2 largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.5
System Administration BIOS (SMBIOS) Version: 3.7
Weight and dimensions
Width: 243.8 mm
Depth: 243.8 mm
