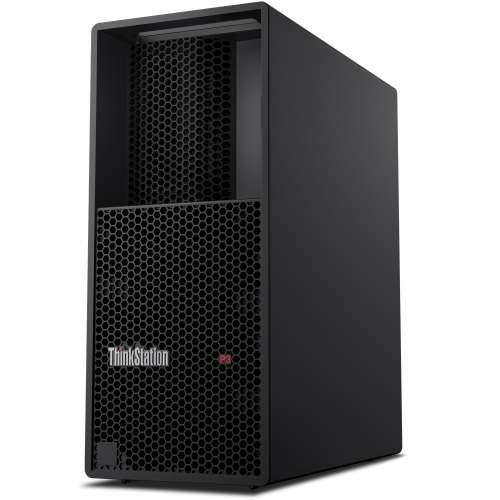

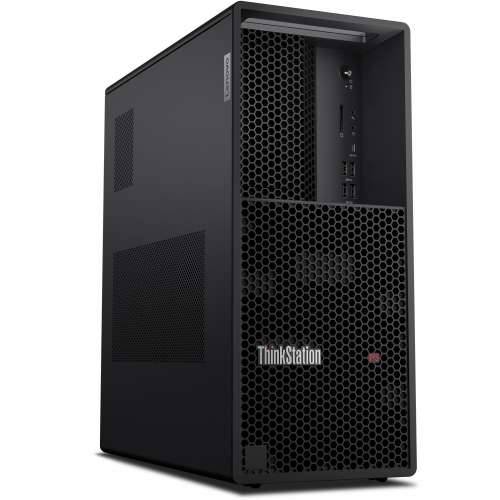

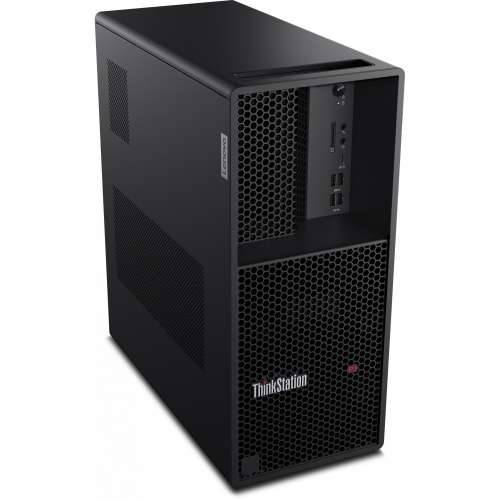

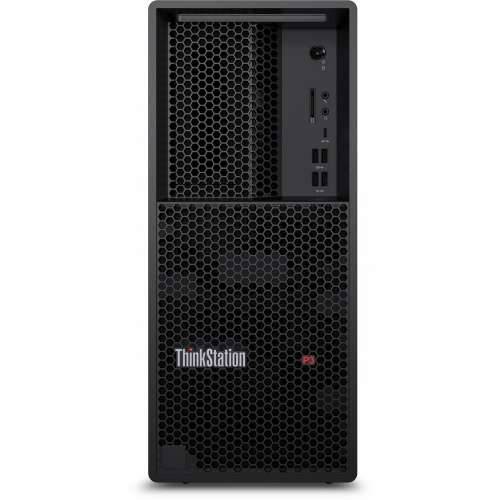

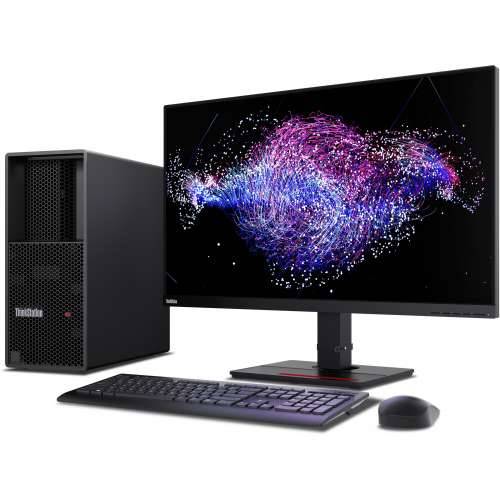

Lenovo ThinkStation P3 TW Ultra9 285K 64/1TB RTX4000 ADA W11P

processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor: 285K
Number of processor cores: 24
Processor threads: 24
Processor boost frequency: 5.7 GHz
Performance cores: 8
Efficient cores: 16
Performance core maximum turbo frequency: 5.5 GHz
Efficient core maximum turbo frequency: 4.6 GHz
Performance Base frequency of the core: 3.7 GHz
Efficient base frequency of the core: 3.2 GHz
Processor cache: 36 MB
Processor Cache Type: Smart Cache
Base processor power: 125 W
Maximum turbo power: 250 W
Neural Processing Unit (NPU)
Neural Processing Unit (NPU): Intel AI Boost
Property: Sparsity Support
Feature: Support for Windows Studio effects
AI software frameworks supported by the NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 36 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
memory
Storage capacity: 64 GB
Maximum RAM memory: 256 GB
Internal memory type: DDR5 SDRAM
Memory layout: 2 x 32 GB
Memory card slots: 4x DIMM
Memory clock frequency: 5600 MHz
storage medium
Total storage capacity: 1 TB
Storage media: SSD
Total SSD capacity: 1 TB
Number of SSDs installed: 1
SSD storage capacity: 1 TB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
Feature: Integrated card reader
Compatible memory cards: SD
graphic
Feature: Separate graphics adapter
Separate GPU manufacturer: NVIDIA
Feature: Built-in graphics adapter
Discrete graphics card model: NVIDIA RTX 4000 Ada
Discrete graphics adapter memory: 20 GB
Number of dedicated graphics cards: 1
Manufacturer of the built-in GPU: Intel
On-board graphics adapter family: Intel Graphics
Built-in graphics card model: Intel Graphics
network
Feature: Ethernet/LAN
Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
Connections and interfaces
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports: 2
USB 3.2 Gen 2x2 Type-C Number of ports: 2
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connections: 2
Number of Ethernet LAN ports (RJ-45): 1
Feature: Microphone input
Feature: Line-out
Feature: Combined headphone/microphone jack
design
Case type: Tower
Feature: Cable lock slot
Cable lock slot type: Kensington
Product color: Black
Services
Motherboard chipset: Intel W880
Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Feature: Trusted Platform Module (TPM)
Product type: Workstation
software
Operating system architecture: 64-bit
Operating system language: German
Installed operating system: Windows 11 Pro
Included software: Lenovo AI Now
energy
Power supply: 750 W
Power supply - Input voltage: 100 - 240 V
Power supply - Input frequency: 50/60 Hz
Weight and dimensions
Width: 180 mm
Depth: 370 mm
Height: 415 mm
Weight: 14.4 kg
Scope of delivery
Feature: Mouse included
Mouse Connectivity: Wired
Feature: Keyboard included
Keyboard Connectivity: Wired
