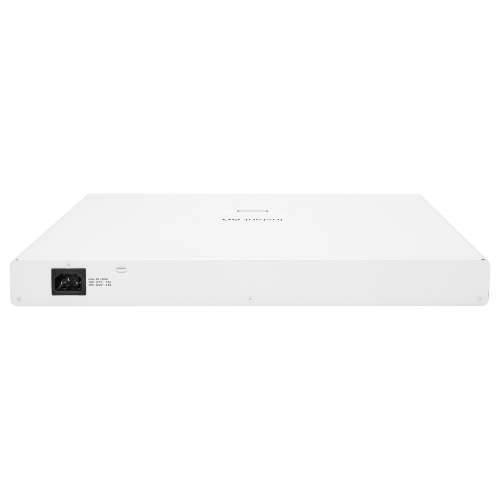

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
Data transmission
Routing/switching capacity: 176 Gbit/s
Pass: 131 MPPS
Data packet buffer: 1.5 MB
design
Stackable: Yes
Services
Physical stacking (units): 4
Built-in processor: Yes
Memory type: DDR3-SDRAM
Storage capacity: 1024 MB
Flash memory: 512 MB
energy
AC input voltage: 200 - 240 V
Power consumption (max.): 760 W
Power consumption note: Maximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) power: 600 W
Other functions
Memory and processor: Single-core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
Additional ports: 48 RJ-45 autosensing 10/100/1000 BASE-T ports with 8 ports of IEEE 802.af/at/bt CL6 PoE and 40 ports of IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports
Performance management features - Description: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial): 4.9 kg (10.8 lbs)
Dimensions (W x D x H) (in inches): 402.8 x 442.5 x 43.9 mm (15.9 x 17.4 x 1.73“)
Operating conditions
Operating temperature: 0 - 40 °C
Weight and dimensions
Width: 402.8 mm
Depth: 442.5 mm
Height: 44 mm
Weight: 4.9 kg
