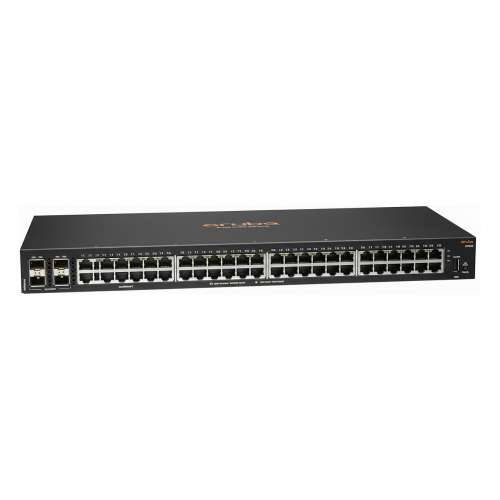

HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack installation, 1U HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch. Switch type: Managed, Switch level: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 48, Number of USB 2.0 ports: 1, Console port: USB. MAC address table: 8192 entries, routing/switching capacity: 104 Gbps. Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack-mountable, form factor: 1U
Podijelite:
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-sized businesses, and small businesses. Designed for reliable, easy, and secure access, this switch family offers a convenient and cost-effective wired access solution for networks supporting the Internet of Things (IoT), mobile applications, and cloud applications. Prepare your network for future demands with a powerful ASIC and the HPE Aruba Networking CX Switch operating system, and benefit from a consistent and efficient user experience. This fully managed series features convenient built-in uplinks with up to 740W Class 4 PoE to support IoT devices such as security cameras and wireless access points. A compact and fanless design is ideal for use in quiet, small workspaces. The CX 6000 Series is easy to deploy and operate, and offers flexible management options, making it a perfect fit for your business and network environment.
New features – Additional information:
It simplifies IT operations through modern Layer 2 switch series that offer reliable and convenient wired access connections for beginners.
The CX 6000 series features convenient integrated 1GbE uplinks and up to 740W Class 4 PoE to support access points, clients and IoT devices.
It offers compact and fanless 8-port and 12-port models for confined spaces.
The CX 6000 offers flexibility in managing and simplifying configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit software, a user-friendly web GUI, or an industry-standard CLI.
SDN-enabled (Software-Defined Network) with REST APIs.
Limited lifetime HPE warranty and integrated switch software that does not require a subscription activation.
New features – Additional information:
It simplifies IT operations through modern Layer 2 switch series that offer reliable and convenient wired access connections for beginners.
The CX 6000 series features convenient integrated 1GbE uplinks and up to 740W Class 4 PoE to support access points, clients and IoT devices.
It offers compact and fanless 8-port and 12-port models for confined spaces.
The CX 6000 offers flexibility in managing and simplifying configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit software, a user-friendly web GUI, or an industry-standard CLI.
SDN-enabled (Software-Defined Network) with REST APIs.
Limited lifetime HPE warranty and integrated switch software that does not require a subscription activation.
Management functions
Switch type: Managed
Switch level: L2/L3
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Site settings configuration (CLI): Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: USB
Number of USB 2.0 ports: 1
network
Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
10G support: No
Data flow control support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Security
DHCP functions: DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List: Yes
Multicast functions
Multicast support: Yes
design
Rack mounting: Yes
Form factor: 1U
Product color: Black
Services
Built-in processor: Yes
Processor manufacturer: ARM
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16000 MB
energy
Energy source: AC
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max.): 439 W
Power consumption note: Max. power (w/o PoE): 41.0W Max. power (w/ PoE): 439W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) ports: 4
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.9 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Additional ports: 48 x 10/100/1000BASE-T Class 4 PoE ports 4 x 1 G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 90%
Weight and dimensions
Width: 442.5 mm
Depth: 304.4 mm
Height: 43.9 mm
Weight: 4.39 kg
Switch type: Managed
Switch level: L2/L3
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Site settings configuration (CLI): Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: USB
Number of USB 2.0 ports: 1
network
Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
10G support: No
Data flow control support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Security
DHCP functions: DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List: Yes
Multicast functions
Multicast support: Yes
design
Rack mounting: Yes
Form factor: 1U
Product color: Black
Services
Built-in processor: Yes
Processor manufacturer: ARM
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16000 MB
energy
Energy source: AC
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max.): 439 W
Power consumption note: Max. power (w/o PoE): 41.0W Max. power (w/ PoE): 439W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) ports: 4
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.9 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Additional ports: 48 x 10/100/1000BASE-T Class 4 PoE ports 4 x 1 G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 90%
Weight and dimensions
Width: 442.5 mm
Depth: 304.4 mm
Height: 43.9 mm
Weight: 4.39 kg
