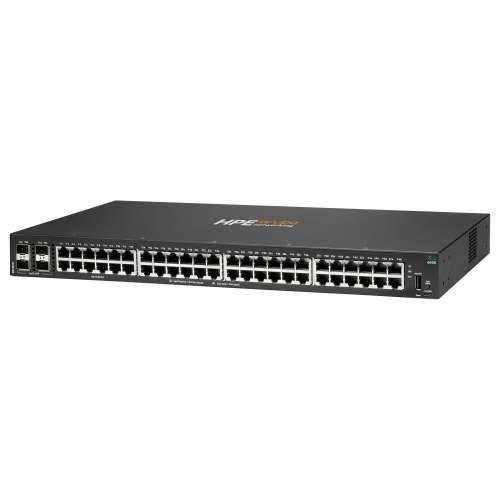

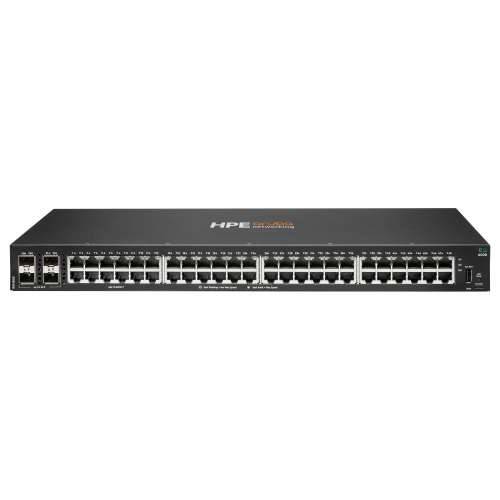

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack Mount, 1U. HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch. Switch Type: Managed, Switch Level: L2/L3. Basic Switching RJ-45 Ethernet Port Type: Gigabit Ethernet (10/100/1000), Number of Basic Switching RJ-45 Ethernet Ports: 48, Number of USB 2.0 Ports: 1, Console Port: USB. MAC Address Table: 8192 Entries, Routing/Switching Capacity: 104 Gbps. Network standard: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack installation, form factor: 1U
Podijelite:
The HPE Aruba Networking CX 6000 Switch Series is a modern, entry-level line of switches ideal for branch offices and small to medium-sized businesses. Designed for reliable, easy, and secure access, the HPE Aruba CX 6000 Series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Built on the Aruba ASIC architecture, the HPE Aruba Networking CX 6000 Switch Series utilizes the AOS-CX programmable operating system, which is used across the Aruba CX portfolio, delivering a more consistent and efficient operator experience. This fully managed series features convenient built-in uplinks with up to 740W Class 4 PoE to support IoT devices such as security cameras and wireless access points. A compact, fanless design makes it ideal for use in quiet, small workspaces. The HPE Aruba CX 6000 series offers easy deployment and use with flexible management options – you will always find the ideal configuration for your business and network environment.
New features – Additional information:
Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that offer reliable and convenient entry-level wired access connectivity.
Convenient integrated 1GbE uplinks and up to 740W Class 4 PoE to support access points, clients and IoT devices.
Compact and fanless PoE model with 12 ports for deployments in confined spaces.
Management flexibility with HPE Aruba Networking Central [1] , user-friendly web GUI, CLI or HPE Aruba Networking NetEdit.
SDN-enabled (Software-Defined Network) with REST APIs.
Limited lifetime HPE warranty and integrated switch software that does not require a subscription activation.
New features – Additional information:
Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that offer reliable and convenient entry-level wired access connectivity.
Convenient integrated 1GbE uplinks and up to 740W Class 4 PoE to support access points, clients and IoT devices.
Compact and fanless PoE model with 12 ports for deployments in confined spaces.
Management flexibility with HPE Aruba Networking Central [1] , user-friendly web GUI, CLI or HPE Aruba Networking NetEdit.
SDN-enabled (Software-Defined Network) with REST APIs.
Limited lifetime HPE warranty and integrated switch software that does not require a subscription activation.
Management functions
Switch type: Managed
Switch level: L2/L3
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Site settings configuration (CLI): Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: USB
Number of USB 2.0 ports: 1
network
Network standard: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
10G support: No
Data flow control support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Security
DHCP functions: DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List: Yes
Multicast functions
Multicast support: Yes
design
Rack mounting: Yes
Form factor: 1U
Product color: Black
Services
Built-in processor: Yes
Processor manufacturer: ARM
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16000 MB
energy
Energy source: AC
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max.): 35.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 90%
Weight and dimensions
Width: 442.5 mm
Depth: 246.5 mm
Height: 43.9 mm
Weight: 2.98 kg
Switch type: Managed
Switch level: L2/L3
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Site settings configuration (CLI): Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: USB
Number of USB 2.0 ports: 1
network
Network standard: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
10G support: No
Data flow control support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Security
DHCP functions: DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List: Yes
Multicast functions
Multicast support: Yes
design
Rack mounting: Yes
Form factor: 1U
Product color: Black
Services
Built-in processor: Yes
Processor manufacturer: ARM
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16000 MB
energy
Energy source: AC
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max.): 35.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 90%
Weight and dimensions
Width: 442.5 mm
Depth: 246.5 mm
Height: 43.9 mm
Weight: 2.98 kg
