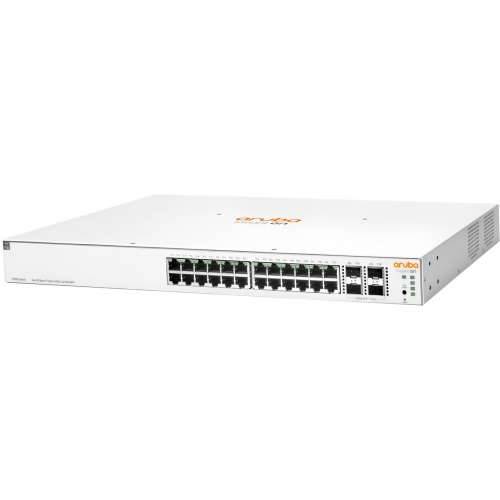

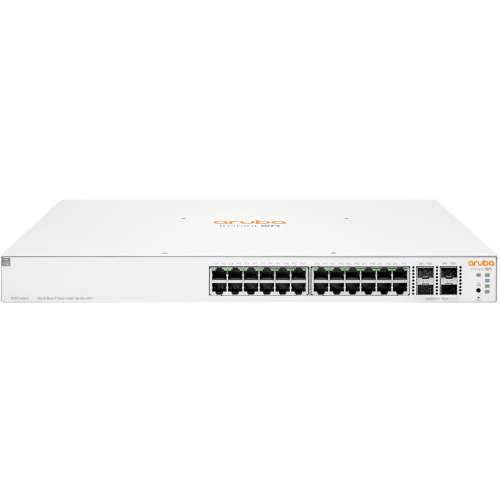

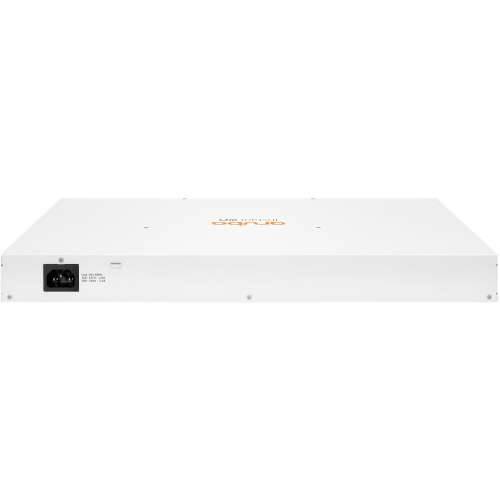

• Smart Switch • 24 RJ-45 10/100/1000, 4 SFP 1/10 GbE ports • Switching performance: 128 Gbps • Throughput: 95.23 Mpps, maximum • ARM Cortex-A9 at 800 MHz 512 MB SDRAM, 256 MB Flash 1.5 MB packet buffer
Management functions
Switch Type: Managed
Switch level: L2+
Feature: Quality of Service (QoS) Support
Feature: Web-based management
Feature: Cloud Managed
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 24
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Quantity of module slots SFP+: 4
network
Feature: 10G Support
Feature: Port mirroring
Feature: Full duplex
Feature: Support data flow control
Property: Link Aggregation
Feature: Rate Limiting
Feature: Auto MDI/MDI-X
Feature: Spanning Tree Protocol
Feature: Auto-scanning
Feature: VLAN support
Data transfer
Routing/switching capacity: 128 Gbps
Passage: 95.23 Mpps
MAC address table: 16000 entries
Waiting time (10-100 Mbps): 4.7 µs
Waiting time (1 Gbps): 2.4 µs
Waiting time (10 Gbps): 1.3 µs
Feature: Jumbo Frames Support
Data packet buffer memory: 1.5 MB
Security
DHCP functions: DHCP client
Property: Access Control List
Feature: IGMP Snooping
Feature: SSH/SSL support
design
Feature: Rack installation
Form factor: 1U
Product color: White
Services
Feature: Built-in processor
Processor: ARM Cortex-A9
Processor clock frequency: 800 MHz
Memory type: SDRAM/Flash
Storage capacity: 512 MB
Flash memory: 256 MB
energy
Power source: AC
Feature: Power adapter included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max.): 490 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total power over Ethernet (PoE): 370 W
Operating conditions
Operating temperature: 0 - 40°C
Storage temperature range: -40 - 70 °C
Relative humidity in operation: 15 - 95%
Humidity during storage: 15 - 95%
Operating altitude: 0 - 3048 m
Weight and dimensions
Width: 442.5mm
Depth: 264.7mm
Height: 43.9mm
Weight: 3.73kg
Switch Type: Managed
Switch level: L2+
Feature: Quality of Service (QoS) Support
Feature: Web-based management
Feature: Cloud Managed
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 24
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Quantity of module slots SFP+: 4
network
Feature: 10G Support
Feature: Port mirroring
Feature: Full duplex
Feature: Support data flow control
Property: Link Aggregation
Feature: Rate Limiting
Feature: Auto MDI/MDI-X
Feature: Spanning Tree Protocol
Feature: Auto-scanning
Feature: VLAN support
Data transfer
Routing/switching capacity: 128 Gbps
Passage: 95.23 Mpps
MAC address table: 16000 entries
Waiting time (10-100 Mbps): 4.7 µs
Waiting time (1 Gbps): 2.4 µs
Waiting time (10 Gbps): 1.3 µs
Feature: Jumbo Frames Support
Data packet buffer memory: 1.5 MB
Security
DHCP functions: DHCP client
Property: Access Control List
Feature: IGMP Snooping
Feature: SSH/SSL support
design
Feature: Rack installation
Form factor: 1U
Product color: White
Services
Feature: Built-in processor
Processor: ARM Cortex-A9
Processor clock frequency: 800 MHz
Memory type: SDRAM/Flash
Storage capacity: 512 MB
Flash memory: 256 MB
energy
Power source: AC
Feature: Power adapter included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max.): 490 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total power over Ethernet (PoE): 370 W
Operating conditions
Operating temperature: 0 - 40°C
Storage temperature range: -40 - 70 °C
Relative humidity in operation: 15 - 95%
Humidity during storage: 15 - 95%
Operating altitude: 0 - 3048 m
Weight and dimensions
Width: 442.5mm
Depth: 264.7mm
Height: 43.9mm
Weight: 3.73kg
