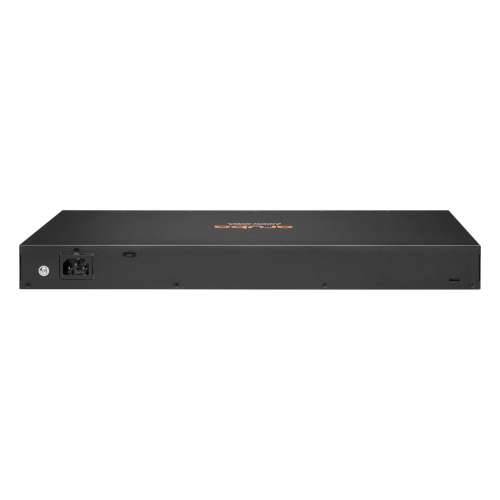

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
Data transmission
Routing/switching capacity: 128 Gbit/s
Pass: 95.2 MPPS
Services
Feature: Built-in processor
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
energy
AC input voltage: 200 - 240 V
Power consumption note: Max. power (w/o PoE): 32.7W Max. power (w/ PoE): 455W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.5 μSec, 10 Gbps: 1.8 μSec
Memory and processor: Dual Core ARM Cortex A9 @ 1016 MHz, 4 GB DDR3 (maximum, depending on model), 16 GB eMMC
Other ports: 24 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 4.19 kg (9.24 lbs)
Dimensions (W x D x H) (in inches): 43.9 x 442 x 268.2 mm (1.73 x 17.4 x 10.6“)
Fans: Fixed fans
Operating conditions
Operating temperature: 0 - 45 °C
Weight and dimensions
Width: 44 mm
Depth: 442 mm
Height: 268 mm
Weight: 4.2 kg
Routing/switching capacity: 128 Gbit/s
Pass: 95.2 MPPS
Services
Feature: Built-in processor
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
energy
AC input voltage: 200 - 240 V
Power consumption note: Max. power (w/o PoE): 32.7W Max. power (w/ PoE): 455W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.5 μSec, 10 Gbps: 1.8 μSec
Memory and processor: Dual Core ARM Cortex A9 @ 1016 MHz, 4 GB DDR3 (maximum, depending on model), 16 GB eMMC
Other ports: 24 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 4.19 kg (9.24 lbs)
Dimensions (W x D x H) (in inches): 43.9 x 442 x 268.2 mm (1.73 x 17.4 x 10.6“)
Fans: Fixed fans
Operating conditions
Operating temperature: 0 - 45 °C
Weight and dimensions
Width: 44 mm
Depth: 442 mm
Height: 268 mm
Weight: 4.2 kg
