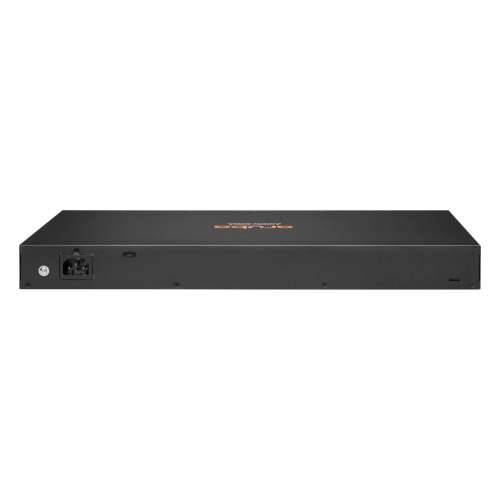

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.
Management functions
Switch type: Managed
Switch level: L2
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: Micro-USB
network
Network standard: IEEE 802.3af, IEEE 802.3at
10G support: No
Port mirroring: Yes
Data flow control support: Yes
Link Aggregation: Yes
Auto MDI/MDI-X: Yes
Spannbaum protocol: Yes
VLAN support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Jumbo Frames Support: Yes
Data packet buffer: 12.38 MB
Security
DHCP functions: DHCP client
Access Control List: Yes
IGMP snooping: Yes
Authentication: MAC-based authentication
Multicast functions
Multicast support: Yes
Protocols
IPv4 & IPv6 functions: IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries: 256
IPv6 FIB entries: 128
design
Rack mounting: Yes
Form factor: 1U
Services
Built-in processor: Yes
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16384 MB
energy
Energy source: AC
Power supply included: Yes
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption note: Max. power (w/o PoE): 45W Max. power (w/ PoE): 480W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.9 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Additional ports: 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 5.02 kg (11.1 lbs)
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 15 - 95%
Storage humidity: 15 - 90%
Weight and dimensions
Width: 44 mm
Depth: 442 mm
Height: 305 mm
Weight: 5 kg
Logistics data
Commodity tariff number (HS): 85176990
Switch type: Managed
Switch level: L2
Quality of Service (QoS) Support: Yes
Web-based management: Yes
Cloud-managed: Yes
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 48
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of SFP module slots: 4
Console port: Micro-USB
network
Network standard: IEEE 802.3af, IEEE 802.3at
10G support: No
Port mirroring: Yes
Data flow control support: Yes
Link Aggregation: Yes
Auto MDI/MDI-X: Yes
Spannbaum protocol: Yes
VLAN support: Yes
Data transmission
Routing/switching capacity: 104 Gbit/s
Pass: 77.3 MPPS
MAC address table: 8192 entries
Waiting time (1 Gbps): 1.9 µs
Static route: Yes
Jumbo Frames Support: Yes
Data packet buffer: 12.38 MB
Security
DHCP functions: DHCP client
Access Control List: Yes
IGMP snooping: Yes
Authentication: MAC-based authentication
Multicast functions
Multicast support: Yes
Protocols
IPv4 & IPv6 functions: IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries: 256
IPv6 FIB entries: 128
design
Rack mounting: Yes
Form factor: 1U
Services
Built-in processor: Yes
Processor: ARM Cortex-A9
Processor clock speed: 1016 MHz
Memory type: DDR3-SDRAM
Storage capacity: 4096 MB
Flash memory: 16384 MB
energy
Energy source: AC
Power supply included: Yes
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption note: Max. power (w/o PoE): 45W Max. power (w/ PoE): 480W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) power: 370 W
Other functions
Latency: 1 Gbps: 1.9 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Additional ports: 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management features - Description: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 5.02 kg (11.1 lbs)
Operating conditions
Operating temperature: 0 - 45 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 15 - 95%
Storage humidity: 15 - 90%
Weight and dimensions
Width: 44 mm
Depth: 442 mm
Height: 305 mm
Weight: 5 kg
Logistics data
Commodity tariff number (HS): 85176990
