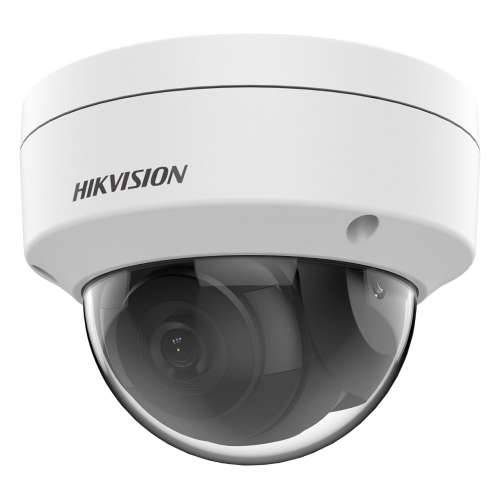

Hikvision DS-2CD2143G2-IS, IP security camera, outdoor, wired, FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN...), ceiling/wall, white. Hikvision DS-2CD2143G2-IS. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired. Mounting type: Ceiling/wall, Product color: White, Form factor: Dome. Rotation angle: 355°, Viewing angle (horizontal): 103°, Viewing angle (vertical): 55°. Sensor type: CMOS, Image sensor size: 25.4 / 3 mm (1/3“). Fixed focal length: 2.8 mm
Podijelite:
OVERVIEW
Customer security requirements vary. That“s why Hikvision designs and manufactures network cameras for a wide range of needs – from general video surveillance to video content analysis using deep learning algorithms – and much more.
Our network cameras deliver high-quality images in varying lighting conditions while minimizing storage and bandwidth requirements. They offer data-driven, context-aware analysis to help you make informed decisions, making them the ideal choice for hundreds of application scenarios.
Customer security requirements vary. That“s why Hikvision designs and manufactures network cameras for a wide range of needs – from general video surveillance to video content analysis using deep learning algorithms – and much more.
Our network cameras deliver high-quality images in varying lighting conditions while minimizing storage and bandwidth requirements. They offer data-driven, context-aware analysis to help you make informed decisions, making them the ideal choice for hundreds of application scenarios.
Services
Type: IP security camera
Supported positioning: Outdoors
Transmission technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cutoff filter: Yes
Number of languages: 33
Certification: FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1)
design
Form factor: Dome
Mounting type: Ceiling/Wall
Product color: White
Housing material: Aluminum
International protection rating (IP code): IP65
IK Code: IK10
camera
Camera pan control: Yes
Camera pan control: Yes
Minimum illumination: 0 lux
Rotation angle: 355°
Viewing angle (horizontal): 103°
Viewing angle (vertical): 55°
Viewing angle of the lens, diagonal: 122°
Tilt angle range: 0 - 75°
Swivel range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 3 mm (1 / 3“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Maximum aperture: 1.6
Fixed focal length: 2.8 mm
Night vision
Night vision: Yes
Night vision range: 30 m
LED type: IR
Infrared wavelength: 850 nm
video
Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Up to 30 frames per second: 30 fps
Video streaming: Yes
Noise cancellation: Yes
Noise cancellation technology: 3D noise cancellation
Image quality adjustment: brightness, contrast, color saturation, sharpness
Data protection masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Transfer speed: 32 Kbps - 8 Mbps
Backlight compensation: Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) coding: Yes
Audio
Audio input channels: 1.0 channels
Audio channels: 1.0 channels
Supported audio formats: AAC, MP3, PCM
Sample rate: 48 kHz
Language codec: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Wi-Fi: No
Bluetooth: No
Number of users: 32 users
Quality of Service (QoS) Support: Yes
Storage medium
Built-in HDD: No
Integrated card reader: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB
Connections and interfaces
Number of Ethernet LAN ports (RJ-45): 1
Security
Password protection: Yes
Video motion detector: Yes
IP address filter: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) System Features: Face Recognition
Anti-flicker: Yes
Heartbeat: Yes
Mirror: Yes
Management functions
Web-based management: Yes
Web browser: Yes
Reset button: Yes
Behavioral analysis: Intruder detection, detection of cable crossings
energy
Power source: Direct current, PoE
Power consumption (max.): 5 W
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output voltage: 12
DC output current: 0.4 A
Operating conditions
Operating temperature: -30 - 60 °C
Storage temperature range: -30 - 60 °C
Relative humidity during operation: 0 - 95%
Storage humidity: 0 - 95%
Weight and dimensions
Height: 84.7 mm
Diameter: 11.1 cm
Weight: 530 g
Packaging data
Packaging width: 134 mm
Packaging depth: 134 mm
Packaging height: 108 mm
Package weight: 720 g
sustainability
Certificates of conformity: REACH, RoHS
Scope of delivery
Number of cameras: 1
Type: IP security camera
Supported positioning: Outdoors
Transmission technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cutoff filter: Yes
Number of languages: 33
Certification: FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1)
design
Form factor: Dome
Mounting type: Ceiling/Wall
Product color: White
Housing material: Aluminum
International protection rating (IP code): IP65
IK Code: IK10
camera
Camera pan control: Yes
Camera pan control: Yes
Minimum illumination: 0 lux
Rotation angle: 355°
Viewing angle (horizontal): 103°
Viewing angle (vertical): 55°
Viewing angle of the lens, diagonal: 122°
Tilt angle range: 0 - 75°
Swivel range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Number of sensors: 1
Image sensor size: 25.4 / 3 mm (1 / 3“)
Full screen processing: Yes
Sensor type: CMOS
lens
Number of lenses: 1
Maximum aperture: 1.6
Fixed focal length: 2.8 mm
Night vision
Night vision: Yes
Night vision range: 30 m
LED type: IR
Infrared wavelength: 850 nm
video
Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Up to 30 frames per second: 30 fps
Video streaming: Yes
Noise cancellation: Yes
Noise cancellation technology: 3D noise cancellation
Image quality adjustment: brightness, contrast, color saturation, sharpness
Data protection masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Transfer speed: 32 Kbps - 8 Mbps
Backlight compensation: Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) coding: Yes
Audio
Audio input channels: 1.0 channels
Audio channels: 1.0 channels
Supported audio formats: AAC, MP3, PCM
Sample rate: 48 kHz
Language codec: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet
Network standard: IEEE 802.1x, IEEE 802.3af
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Wi-Fi: No
Bluetooth: No
Number of users: 32 users
Quality of Service (QoS) Support: Yes
Storage medium
Built-in HDD: No
Integrated card reader: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB
Connections and interfaces
Number of Ethernet LAN ports (RJ-45): 1
Security
Password protection: Yes
Video motion detector: Yes
IP address filter: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) System Features: Face Recognition
Anti-flicker: Yes
Heartbeat: Yes
Mirror: Yes
Management functions
Web-based management: Yes
Web browser: Yes
Reset button: Yes
Behavioral analysis: Intruder detection, detection of cable crossings
energy
Power source: Direct current, PoE
Power consumption (max.): 5 W
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output voltage: 12
DC output current: 0.4 A
Operating conditions
Operating temperature: -30 - 60 °C
Storage temperature range: -30 - 60 °C
Relative humidity during operation: 0 - 95%
Storage humidity: 0 - 95%
Weight and dimensions
Height: 84.7 mm
Diameter: 11.1 cm
Weight: 530 g
Packaging data
Packaging width: 134 mm
Packaging depth: 134 mm
Packaging height: 108 mm
Package weight: 720 g
sustainability
Certificates of conformity: REACH, RoHS
Scope of delivery
Number of cameras: 1
