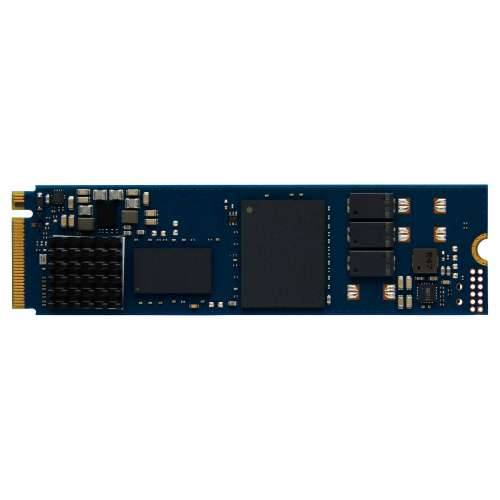

Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD, 240 GB, M.2, 4500 MB/s. SSD storage capacity: 240 GB, SSD form factor: M.2, read speed: 4500 MB/s, write speed: 400 MB/s, component for: servers
Podijelite:
Enterprise-class server applications
Kingston“s DC2000B SSD, featuring the latest Gen 4x4 PCIe interface and 3D TLC NAND, is a high-performance boot SSD for data centers. Low latency, consistent IOPS, and hardware-based power-loss protection ensure reliability and efficiency. With capacities up to 960GB, it is ideal for server boot and caching applications in enterprise environments.
The Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD featuring a Gen 4x4 PCIe controller and 3D TLC NAND. It“s ideal for use in high-volume rackmount servers as an internal boot drive to free up valuable front-panel drive bays, and for custom-built systems requiring a high-performance M.2 SSD with hardware-based power loss protection (PLP). New to the DC2000B is an integrated aluminum heatsink, providing broader thermal compatibility for a wide range of systems. The DC2000B offers low latency and excellent I/O consistency to handle diverse workloads, from boot drive applications to high-speed application caching. Rated for 0.4 DWPD write endurance, the DC2000B comes with a 5-year warranty.
PCIe 4.0 NVMe Performance
Utilizes PCIe Gen 4x4 lanes for high speeds.
Integrated Power Loss Protection (PLP)
Reduces the possibility of data loss and/or damage during unexpected power outages.
Low latency and IOPS consistency
Optimized firmware for low latency and IO consistency under high workload throughput.
Designed for data centers
Optimized for the requirements of server boot applications where low latency and IO consistency are the most important design criteria.
Kingston“s DC2000B SSD, featuring the latest Gen 4x4 PCIe interface and 3D TLC NAND, is a high-performance boot SSD for data centers. Low latency, consistent IOPS, and hardware-based power-loss protection ensure reliability and efficiency. With capacities up to 960GB, it is ideal for server boot and caching applications in enterprise environments.
The Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD featuring a Gen 4x4 PCIe controller and 3D TLC NAND. It“s ideal for use in high-volume rackmount servers as an internal boot drive to free up valuable front-panel drive bays, and for custom-built systems requiring a high-performance M.2 SSD with hardware-based power loss protection (PLP). New to the DC2000B is an integrated aluminum heatsink, providing broader thermal compatibility for a wide range of systems. The DC2000B offers low latency and excellent I/O consistency to handle diverse workloads, from boot drive applications to high-speed application caching. Rated for 0.4 DWPD write endurance, the DC2000B comes with a 5-year warranty.
PCIe 4.0 NVMe Performance
Utilizes PCIe Gen 4x4 lanes for high speeds.
Integrated Power Loss Protection (PLP)
Reduces the possibility of data loss and/or damage during unexpected power outages.
Low latency and IOPS consistency
Optimized firmware for low latency and IO consistency under high workload throughput.
Designed for data centers
Optimized for the requirements of server boot applications where low latency and IO consistency are the most important design criteria.
Features
SSD storage capacity: 240 GB
SSD form factor: M.2
Interface: PCI Express 4.0
NVMe: Yes
Storage type: 3D TLC
Component for: Server
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 4500 MB/s
Write speed: 400 MB/s
Random reading (4KB): 260,000 IOPS
Random write (4KB): 18000 IOPS
Read latency: 70 µs
Write latency: 53 µs
PCI Express interface data lanes: x4
SMART Support: Yes
H/W PLP function: Yes
Mean time between failures (MTBF): 2,000,000 h
Drive writes per day (DWPD): 0.4
TBW rating: 175
energy
Energy consumption (reading): 3.01 W
Energy consumption (writing): 4.09 W
Average power consumption (reading): 2.97 W
Average power consumption (writing): 4.02 W
Weight and dimensions
Width: 22 mm
Depth: 80 mm
Height: 8.9 mm
Weight: 9 g
Packaging data
Packaging width: 129.5 mm
Packaging depth: 14.2 mm
Packaging height: 184.2 mm
Package weight: 33.77 g
Operating conditions
Operating temperature: 0 - 70 °C
Storage temperature range: -40 - 85 °C
Vibrations out of service: 20 G
Other functions
Cooling: Heat sink
Logistics data
Country of origin: China, Taiwan
Shipping carton width: 135.9 mm
Length of the shipping carton: 203.2 mm
Shipping carton height: 69.8 mm
Shipping carton weight: 280.62 g
Number of products per shipping carton: 6 pieces
