Digitus Industrial 8+4 Port Gigabit Ethernet PoE Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full Duplex, Power over Ethernet (PoE). Digitus Industrial 8+4 Port Gigabit Ethernet PoE Switch. Switch Type: Unmanaged. Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000), Number of Basic Switching RJ-45 Ethernet Ports: 8, Number of Installed SFP Modules: 2, Number of Installed SFP Modules: 2. Full Duplex. MAC Address Table: 8000 Entries, Routing/Switching Capacity: 1 Gbps. Network Standard: IEEE 802.3af. DC Input Voltage: 48–57 V. Power over Ethernet (PoE)
Podijelite:
8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40-rated enclosure with redundant power supply is ideal for monitoring, control management, and wireless services in temperatures ranging from -40°C to 80°C.
- 8 GE ports, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
- 4 x 10/100/1000 Mbit (SFP)

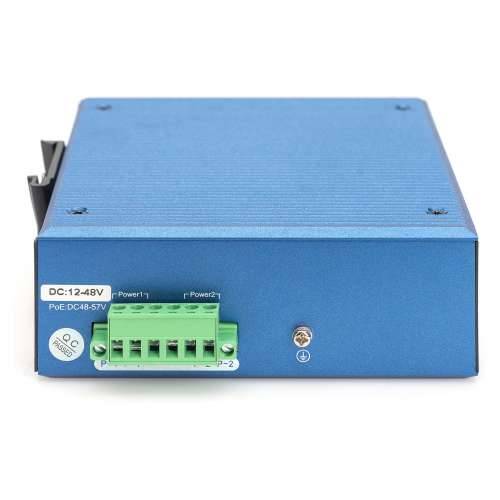

- Redundant power supply 48-57 V (DC)
- Metal housing according to IP40 standard

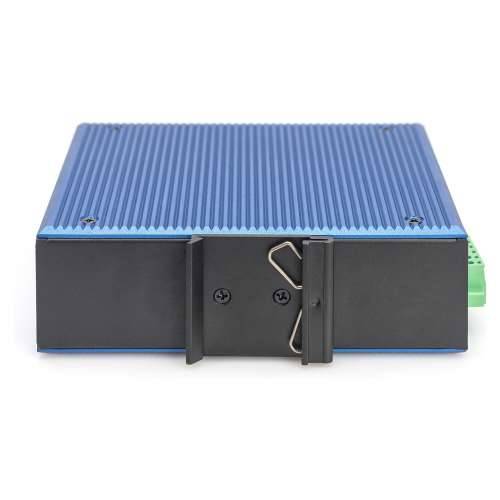

- Easy mounting on a DIN rail
- Operating temperature from -40°C to 80°C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

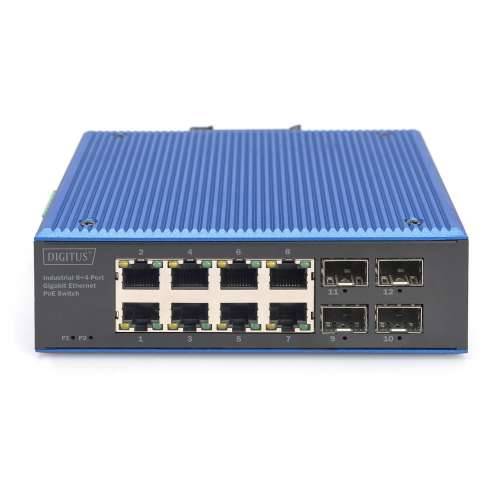

The DN-651153 is a rugged 8+4 port industrial Gigabit Ethernet PoE switch for harsh environments. Offering non-blocking wire-speed performance, it provides 8 x 10/100/1000 BASE-TX RJ45 ports (each up to 30 W PoE) + 4 x 1000 BASE-Fx ports. The IP40-rated enclosure with redundant power supply is ideal for monitoring, control management, and wireless services in temperatures ranging from -40°C to 80°C.
- 8 GE ports, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
- 4 x 10/100/1000 Mbit (SFP)
- Redundant power supply 48-57 V (DC)
- Metal housing according to IP40 standard
- Easy mounting on a DIN rail
- Operating temperature from -40°C to 80°C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems
The DN-651153 is a rugged 8+4 port industrial Gigabit Ethernet PoE switch for harsh environments. Offering non-blocking wire-speed performance, it provides 8 x 10/100/1000 BASE-TX RJ45 ports (each up to 30 W PoE) + 4 x 1000 BASE-Fx ports. The IP40-rated enclosure with redundant power supply is ideal for monitoring, control management, and wireless services in temperatures ranging from -40°C to 80°C.
Management functions
Switch type: Unmanaged
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 8
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) ports: 8
Number of installed SFP modules: 2
Number of installed SFP modules: 2
Optical cable connector: SFP, SFP+
network
Network standard: IEEE 802.3af
10G support: No
Full duplex: Yes
Half-duplex: Yes
Data flow control support: Yes
Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
VLAN support: No
Data transmission
Routing/switching capacity: 1 Gbit/s
Transfer rate: 38.7 MPPS
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo Frames Support: Yes
Jumbo frames: 9000
Data packet buffer: 4.1 MB
design
Rack mounting: No
Stackable: No
Product color: Black, Blue
Housing material: Metal
International protection rating (IP code): IP40
DIN rail mounting: Yes
Vandal-proof: No
Suitable for outdoor use: No
Services
Plug & Play: Yes
Mean time between failures (MTBF): 300,000 h
energy
Power source: DC/PoE
Power supply included: Yes
Support for redundant power supply: Yes
DC input voltage: 48 - 57 V
Power consumption (standard operation): 10 W
Pressure increase protection: Yes
Pressure rise protection voltage: 4 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) ports: 4
Total Power over Ethernet (PoE) power consumption: 30 W
Other functions
Bandwidth: 52 Gbit/s
Ethernet interface type: Gigabit Ethernet
Operating conditions
Operating temperature: -40 - 80 °C
Storage temperature range: -40 - 80 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 95%
Weight and dimensions
Width: 143.7 mm
Depth: 125 mm
Height: 47.7 mm
Weight: 760 g
Scope of delivery
Quick Start Overview: Yes
Operating instructions: Yes
Packaging data
Packaging width: 158 mm
Packaging depth: 66 mm
Packaging height: 213 mm
Packaging volume: 2221.16 cm³
Package weight: 750 g
Logistics data
UK customs tariff code: 85176200
Country of origin: China
Switch type: Unmanaged
Connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 8
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) ports: 8
Number of installed SFP modules: 2
Number of installed SFP modules: 2
Optical cable connector: SFP, SFP+
network
Network standard: IEEE 802.3af
10G support: No
Full duplex: Yes
Half-duplex: Yes
Data flow control support: Yes
Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
VLAN support: No
Data transmission
Routing/switching capacity: 1 Gbit/s
Transfer rate: 38.7 MPPS
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo Frames Support: Yes
Jumbo frames: 9000
Data packet buffer: 4.1 MB
design
Rack mounting: No
Stackable: No
Product color: Black, Blue
Housing material: Metal
International protection rating (IP code): IP40
DIN rail mounting: Yes
Vandal-proof: No
Suitable for outdoor use: No
Services
Plug & Play: Yes
Mean time between failures (MTBF): 300,000 h
energy
Power source: DC/PoE
Power supply included: Yes
Support for redundant power supply: Yes
DC input voltage: 48 - 57 V
Power consumption (standard operation): 10 W
Pressure increase protection: Yes
Pressure rise protection voltage: 4 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) ports: 4
Total Power over Ethernet (PoE) power consumption: 30 W
Other functions
Bandwidth: 52 Gbit/s
Ethernet interface type: Gigabit Ethernet
Operating conditions
Operating temperature: -40 - 80 °C
Storage temperature range: -40 - 80 °C
Relative humidity during operation: 5 - 95%
Storage humidity: 5 - 95%
Weight and dimensions
Width: 143.7 mm
Depth: 125 mm
Height: 47.7 mm
Weight: 760 g
Scope of delivery
Quick Start Overview: Yes
Operating instructions: Yes
Packaging data
Packaging width: 158 mm
Packaging depth: 66 mm
Packaging height: 213 mm
Packaging volume: 2221.16 cm³
Package weight: 750 g
Logistics data
UK customs tariff code: 85176200
Country of origin: China
