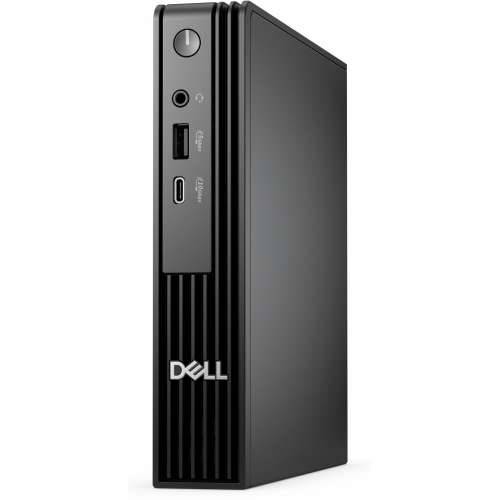

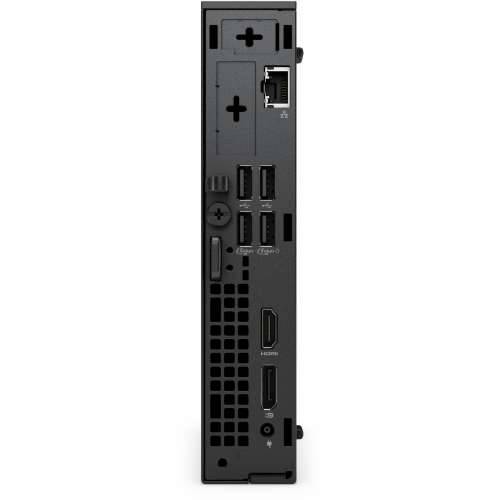

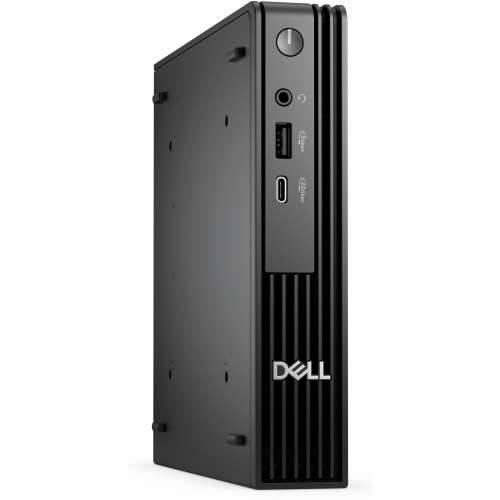

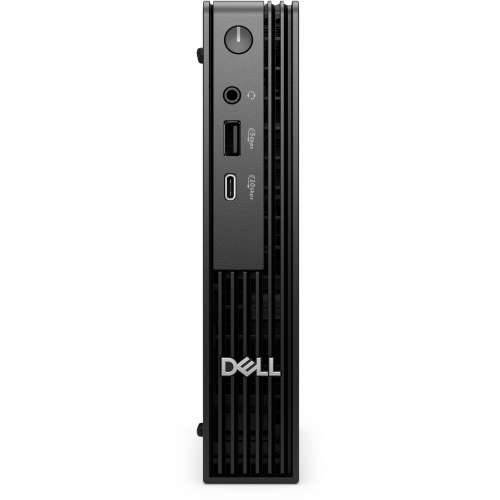

Dell Pro MICRO QCM1250

processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel Core i5-14xxx
Processor: i5-14500T
Number of processor cores: 14
Processor threads: 20
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 8
Performance core maximum turbo frequency: 4.8 GHz
Efficient core maximum turbo frequency: 3.4 GHz
Performance Core base frequency: 1.7 GHz
Efficient base frequency of the core: 1.2 GHz
Processor cache: 24 MB
Processor Cache Type: Smart Cache
Number of installed processors: 1
Base processor power: 35 W
Maximum turbo power: 92 W
Neural Processing Unit (NPU)
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
memory
Storage capacity: 16 GB
Maximum RAM memory: 64 GB
Internal memory type: DDR5 SDRAM
Memory layout: 1 x 16 GB
Memory card slots: 2x SO-DIMM
Feature: Without ECC
Memory channels: Single channel
Storage data transfer rate: 4800 MT/s
storage medium
Total storage capacity: 512 GB
Storage media: SSD
Number of installed storage drives: 1
Total SSD capacity: 512 GB
Number of SSDs installed: 1
SSD storage capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
graphic
Feature: Built-in graphics adapter
Discrete graphics card model: Not available
Manufacturer of the built-in GPU: Intel
On-board graphics adapter family: Intel® UHD Graphics
Built-in graphics card model: Intel UHD Graphics 770
network
Feature: Ethernet/LAN
Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel WGI219LM
Feature: Wi-Fi
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WiFi controller model: Intel Wi-Fi 6E AX211
Antenna type: 2x2
Antenna design: Internal
Feature: Bluetooth
Connections and interfaces
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports: 3
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connections: 1
DisplayPort version: 1.4a
Number of Ethernet LAN ports (RJ-45): 1
Feature: Combined headphone/microphone jack
Feature: Direct current connection (DC)
Number of rear USB ports: 4
Number of front USB ports: 2
Number of front audio ports: 1
design
Case type: Micro PC
Supported positioning: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product color: Black
Feature: Intel® vPro™ Platform Eligibility
Services
Market positioning: Business
Motherboard Chipset: Intel Q870
Audio chip: Realtek ALC3204
Audio system: High Definition Audio
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) Version: 2.0
software
Operating system architecture: 64-bit
Installed operating system: Windows 11 Pro
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
energy
Power supply: 90 W
Power supply - Input voltage: 100 - 240 V
Power supply - Input frequency: 50 / 60 Hz
Operating conditions
Operating temperature: 10 - 35 °C
Storage temperature range: -40 - 65 °C
Relative humidity during operation: 20 - 80%
Storage humidity: 5 - 95%
Operating altitude: -15.2 - 3048 m
Altitude when stored: -15.2 - 10668 m
Vibrations in operation: 0.26 G
Non-operational vibrations: 1.37 G
Shock resistance in operation: 40 G
Shock resistance when not in use: 105 G
sustainability
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold
Weight and dimensions
Width: 36 mm
Depth: 178 mm
Height: 182 mm
Weight: 1.16 kg
