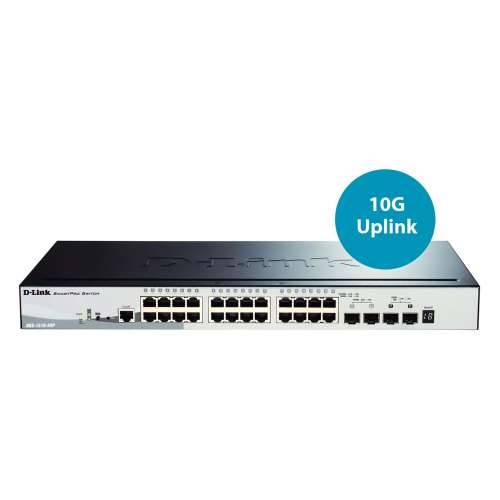

The D-Link DGS 1510-28P switch is engineered to meet the demands of modern networks, offering robust security, high performance, and advanced networking capabilities. With a switching capacity of 92 Gbps and forwarding performance of 68.45 Mpps, it ensures efficient handling of network traffic, making it an ideal solution for businesses looking to optimize their network performance. The switch also features 24 PoE+ ports, 2 Gigabit SFP ports, and 2 10 Gigabit SFP+ ports, providing flexible connectivity options for a variety of devices while supporting high-speed connections and power over Ethernet. Security is a top priority, with support for multiple authentication methods and encryption algorithms to protect network access and data. Additionally, its Layer 3 advanced switching capabilities, Quality of Service (QoS), and support for various routing protocols enable effective traffic management and prioritization. Designed for reliability, the D-Link DGS 1510-28P operates efficiently under a wide range of environmental conditions, backed by an MTBF of 275,428 hours and dual fans for cooling, ensuring long-term, dependable performance for your network.
management functions
Switch Type: Managed
Switch level: L3
Quality of Service (QoS) Support: Yes
Web-based management: Yes
System Event Log: Yes
connections and interfaces
Number of basic switching RJ-45 Ethernet ports: 24
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Quantity of SFP module slots: 2
Number of module slots SFP+: 2
Power plug: DC connector
network
Network standard: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G Support: Yes
supported cable types: Cat5, Cat5e
Port Mirroring: Yes
Full Duplex: Yes
Support Flow Control: Yes
Link Aggregation: Yes
Broadcast Storm Control: Yes
Auto MDI/MDI-X: Yes
Head of Line (HOL) Blocking: Yes
Auto Negotiation Function: Yes
MAC address self-learning supported: Yes
VLAN Support: Yes
data transmission
MAC address table: 16000 entries
Routing/switching capacity: 92 Gbps
Transfer Rate: 68.45Mpps
Store and Forward: Yes
Number of static routes: 512
Jumbo Frames Support: Yes
Data packet buffer memory: 1.5 MB
Security
DHCP functions: DHCP server, DHCP client
Access Control List: Yes
IGMP snooping: Yes
MAC Address Filtering: Yes
Static port security: Yes
SSH/SSL Support: Yes
multicast capabilities
Multicast Support: Yes
design
Rack Mount: Yes
Stackable: Yes
Color of product: Black
LED indicators: activity, link, PoE, power
Number of fans: 2 fans
Security: cUL, CB
Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC
Services
Physical stacking (units): 6
Virtual Stacking (Units): 32
Noise level: 46.4 dB
Performance
AC Input Voltage: 100-240V
AC input frequency: 50 - 60 Hz
Power consumption (standard operation): 238.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) ports: 24
Total power Power over Ethernet (PoE): 193 W
operating conditions
Operating temperature: -5 - 50 °C
Storage temperature range: -20 - 70 °C
Operating relative humidity: 0 - 95%
Humidity during storage: 0 - 95%
Heat dissipation: 813.967 BTU/hr
weight and dimensions
Width: 440mm
Depth: 250mm
Height: 44mm
Weight: 2.54kg
logistic data
Goods tariff number (HS): 85176990
