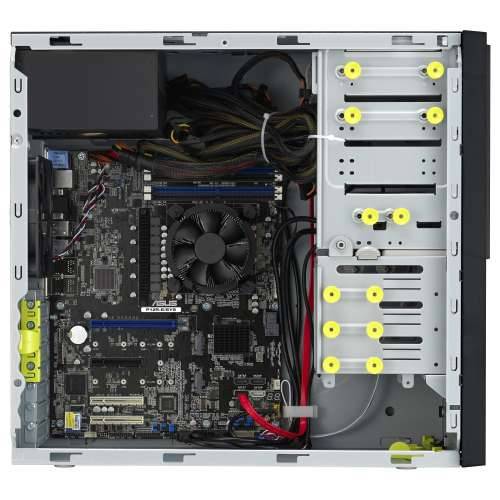

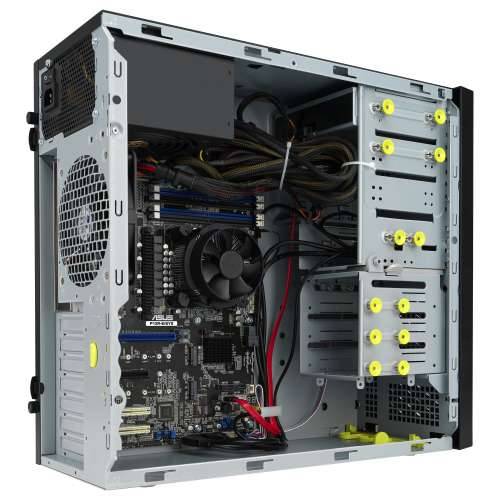

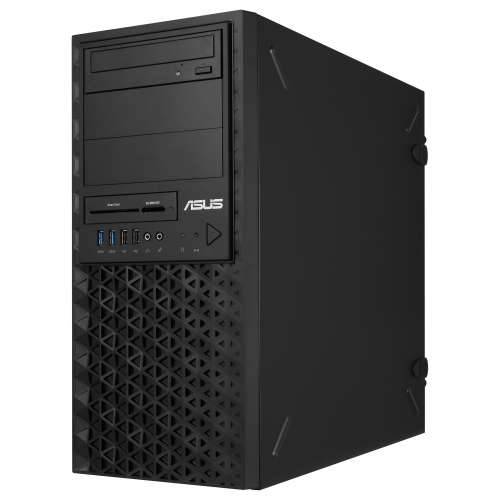

Barebone ASUS TS100-E11-PI4/300W

processor
Built-in processor: No
Motherboard chipset: Intel C256
Processor socket: LGA 1200 (Socket H5)
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Number of supported processors: 1
memory
Number of DIMM slots: 4
Supported memory types: DDR4-SDRAM
Supported DIMM module capacities: 8GB, 16GB, 32GB
Maximum RAM: 128 GB
Buffered memory type: Unregistered (unbuffered)
Supported UDIMM clock speeds: 3200 MHz
Memory channels: Dual channel
ECC: Yes
Storage medium
Number of 2.5“ expansion slots: 1
Number of 3.5“ expansion slots: 3
Supported storage drive sizes: 2.5“, 3.5“, M.2
Supported storage drives: HDD & SSD
SSD form factor: M.2
network
Ethernet/LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
Connections and interfaces
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 2
Number of HDMI ports: 1
Number of VGA (D-Sub) ports: 1
Number of PS/2 ports: 1
Headphone outputs: 1
Microphone input: Yes
SATA III ports: 8
Expansion slots
PCI Express Slots Version: 4.0
Number of M.2 (M) slots: 2
design
Case type: Tower
Product color: Black
LED indicators: Yes
Reset button: Yes
Certifications: BSMI, CE, FCC (Class B)
energy
Power supply: 300 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Operating conditions
Operating temperature: 10 - 35 °C
Storage temperature range: -40 - 70 °C
Storage humidity: 20 - 90%
Weight and dimensions
Width: 190 mm
Depth: 423 mm
Height: 435 mm
Weight: 11.6 kg
Packaging data
Package weight: 14.7 kg
