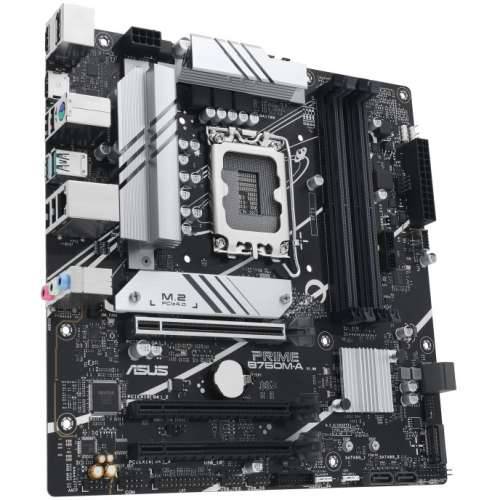

• Micro-ATX motherboard, Socket 1700, Intel Core™ Ultra processors (Series 2) • Intel B760 chipset • 128 GB max. RAM, DDR5, up to 7200 MHz, 4 slots • 2x HDMI, 1x DP, 2x USB 3.2 • 3x PCIe 4.0, 4x SATA600, 2x M.2
processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor slots: LGA 1700
Storage
Supported memory: DDR5-SDRAM
Number of memory slots: 4
RAM memory maximum: 128 GB
RAM type: DIMM
Memory Channels: Dual Channel
Without ECC: Yes
Supported memory speed: 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800MHz
Supported memory clock speed (max): 7200 MHz
Unbuffered memory: Yes
Storage controller
Supported storage drive interfaces: M.2, SATA III
Supported storage drives: HDD & SSD
Maximum number of HDD supported: 4
Number of storage drives supported: 6
graphic
Parallel processing technology: Not supported
Internal I/O ports
Number of USB 2.0 interfaces: 3
USB 3.2 Gen 1 (3.1 Gen 1) Ports: 3
SATA III ports: 4
S/PDIF out connector: Yes
Front panel audio plug: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connection: Yes
RGB LED header: Yes
Rear I/O ports
Number of USB 2.0 ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 2
Number of PS/2 connections: 1
Number of DisplayPort connections: 1
Headphone outputs: 1
Line in: Yes
Microphone input: Yes
WiFi AP antenna socket: 1
network
WiFi: Yes
Built-in Ethernet port: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
characteristics
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Audio Channels: 7.1 channels
Supports Windows operating systems: Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 slots (Gen 4.x): 3
Number of M.2 (M) slots: 2
BIOS
BIOS Type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS button: Yes
Weight and dimensions
Width: 244mm
Depth: 244mm
Height: 40mm
scope of delivery
Cables included: SATA
