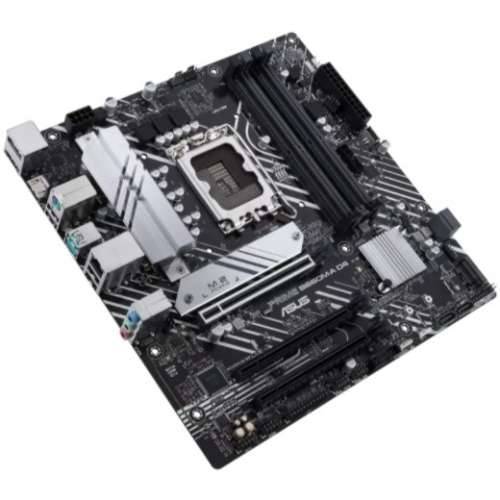

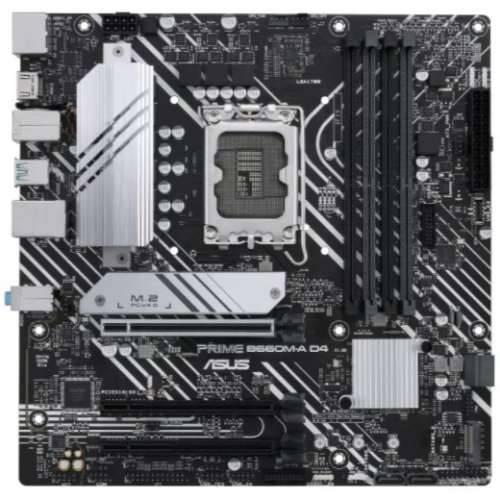

• mATX mainboard with Intel 1700 socket for Intel Core 13th/12th generation • Intel B660 chipset, Intel HD Graphics • 128 GB max. RAM, DDR4 up to 5333MHz • RGB lighting • 1x DisplayPort, 2x HDMI, 3x USB 3.2, 4x USB 3.0, 5x USB 2.0, 1x Gigabi
processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Storage
Supported memory: DDR4-SDRAM
Number of memory slots: 4
Memory Type: DIMM
Memory channels: Two-channel
Feature: Without ECC
Supported memory speed: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
Supported memory clock speed (max.): 5333 MHz
Maximum RAM memory: 128 GB
Storage controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum number of HDD supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10
Internal I/O ports
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
SATA III connectors: 4
Feature: S/PDIF from plug
Feature: Front panel audio connector
Feature: ATX power connector (24-pin)
Feature: Power Fan Connector
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: RGB LED pin header
I/O ports on the rear
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type C ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 1
Number of HDMI ports: 2
Number of DisplayPort connectors: 1
network
Feature: Ethernet/LAN
Ethernet interface type: Gigabit Ethernet
characteristics
Motherboard Chipset: Intel B660
Audio chip: Realtek ALC897
Audio channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard Chipset Family: Intel
Cooling: Passive
Supports Windows operating systems: Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) ports: 2
PCI Express x16 slots (Gen 4.x): 1
Number of M.2 (M) slots: 2
BIOS
BIOS Type: UEFI AMI
BIOS memory size: 128 Mbit
Weight and dimensions
Width: 244mm
Depth: 244 mm
scope of delivery
Cables included: SATA
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Storage
Supported memory: DDR4-SDRAM
Number of memory slots: 4
Memory Type: DIMM
Memory channels: Two-channel
Feature: Without ECC
Supported memory speed: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
Supported memory clock speed (max.): 5333 MHz
Maximum RAM memory: 128 GB
Storage controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum number of HDD supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10
Internal I/O ports
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
SATA III connectors: 4
Feature: S/PDIF from plug
Feature: Front panel audio connector
Feature: ATX power connector (24-pin)
Feature: Power Fan Connector
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: RGB LED pin header
I/O ports on the rear
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type C ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 1
Number of HDMI ports: 2
Number of DisplayPort connectors: 1
network
Feature: Ethernet/LAN
Ethernet interface type: Gigabit Ethernet
characteristics
Motherboard Chipset: Intel B660
Audio chip: Realtek ALC897
Audio channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard Chipset Family: Intel
Cooling: Passive
Supports Windows operating systems: Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) ports: 2
PCI Express x16 slots (Gen 4.x): 1
Number of M.2 (M) slots: 2
BIOS
BIOS Type: UEFI AMI
BIOS memory size: 128 Mbit
Weight and dimensions
Width: 244mm
Depth: 244 mm
scope of delivery
Cables included: SATA
