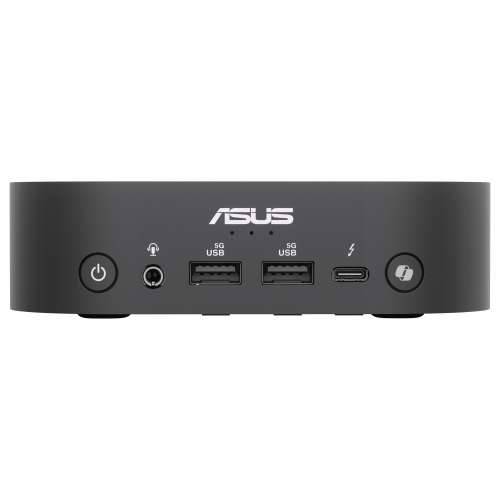

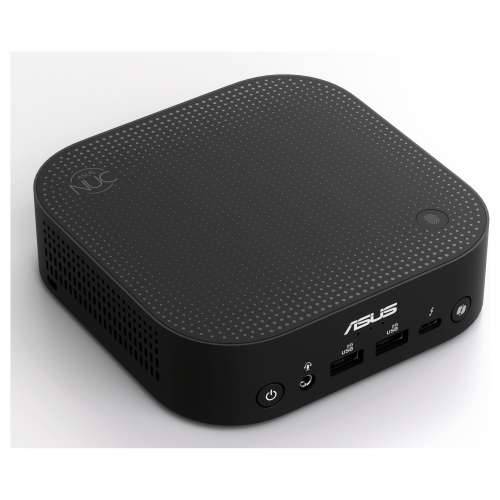

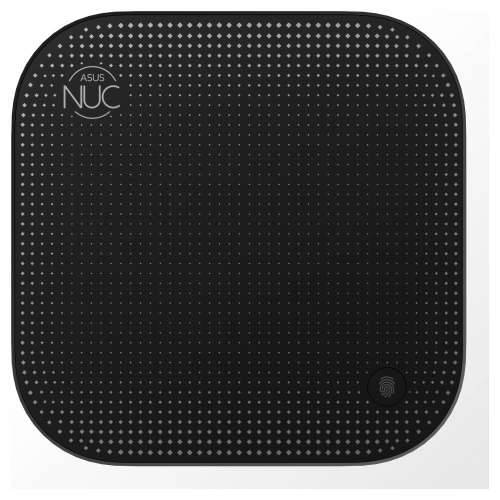

ASUS NUC Gen14 Pro AI Lunar Canyon U7/32GB/1TB/Win11Pro RNUC14LNKU7094N2 EU Cord

processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor: 258V
Number of processor cores: 8
Processor threads: 8
Processor boost frequency: 4.8 GHz
Performance cores: 4
Low Power Efficient Core: 4
Performance core maximum turbo frequency: 4.8 GHz
Low Power Efficient-Core maximum turbo frequency: 3.7 GHz
Performance Base frequency of the core: 2.2 GHz
Low power efficient core base frequency: 2200 MHz
Processor cache: 12 MB
Processor Cache Type: Smart Cache
Base power consumption of the processor: 17 W
Maximum turbo power: 37 W
Neural Processing Unit (NPU)
Neural Processing Unit (NPU): Intel AI Boost
Feature: Sparsity Support
Feature: Support for Windows Studio effects
AI software frameworks supported by the NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 115 tera operations per second
NPU performance up to: 47 tera-operations per second
GPU performance up to: 64 tera operations per second
memory
Storage capacity: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz
Memory channels: Dual channel
Storage medium
Total storage capacity: 1 TB
Storage media: SSD
Total SSD capacity: 1 TB
Number of SSDs installed: 1
SSD storage capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
graphic
Feature: Built-in graphics adapter
Separate graphics card model: Not available
Manufacturer of the built-in GPU: Intel
On-board graphics adapter family: Intel Arc Graphics
Built-in graphics card model: Intel Arc Graphics 140V
network
Feature: Ethernet/LAN
Ethernet LAN data transfer rates: 10, 100, 1000, 2500 Mbit/s
LAN controller: Intel I226-V
Feature: Wi-Fi
Top WLAN standard: Wi-Fi 7 (802.11be)
WLAN standards: Wi-Fi 7 (802.11be)
Manufacturer of WLAN controllers: Intel
WiFi controller model: Intel Wi-Fi 7 BE201
Feature: Bluetooth
Bluetooth version: 5.4
Connections and interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Features: Intel® Thunderbolt 4
Number of Thunderbolt 4 ports: 2
Number of HDMI ports: 1
HDMI version: 2.1
Number of Ethernet LAN ports (RJ-45): 1
Feature: Combined headphone/microphone jack
Feature: Direct current (DC) connection
Number of rear USB ports: 3
Number of front USB ports: 3
Number of front audio connections: 1
design
Case type: Mini PC
Supported positioning: Horizontal
Feature: Cable lock slot
Cable lock slot type: Kensington
Product color: Black
Year of introduction: 2025
Services
Market positioning: Business
Motherboard chipset: Intel SoC
Audio chip: Realtek ALC3288
Product type: Mini PC
software
Operating system architecture: 64-bit
Installed operating system: Windows 11 Pro
energy
Power supply: 120 W
Weight and dimensions
Width: 130 mm
Depth: 130 mm
Height: 34 mm
Weight: 500 g
