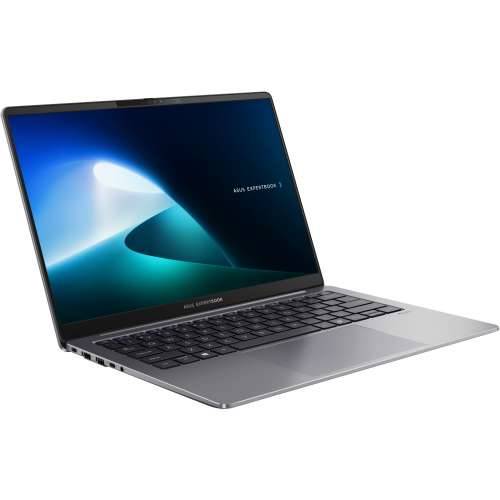

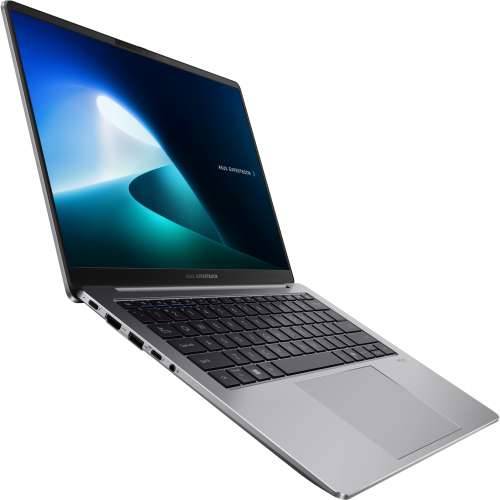

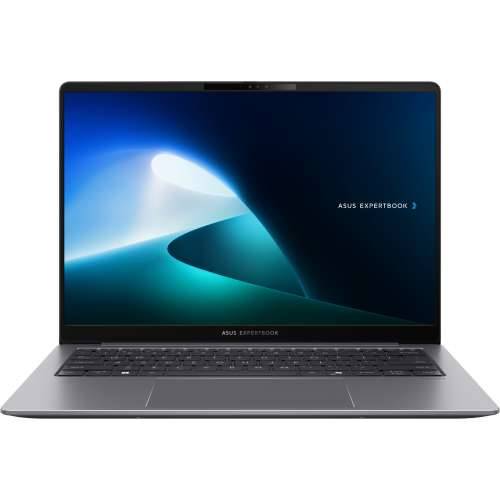

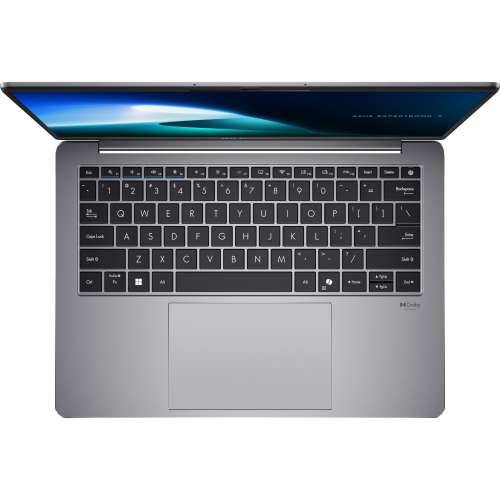

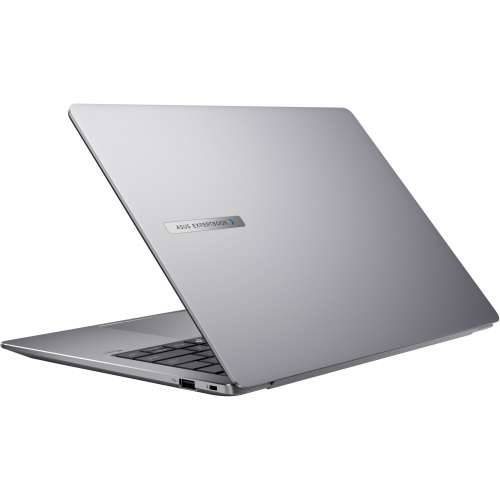

ASUS ExpertBook P5 14“ U5-226V 16 512 P5405CSA-NZ0910X W11P

design
Color name: Misty Grey
Product type: Laptop
Product color: Grey
Form factor: Hinged case
Market positioning: Work
Screen
Screen diagonal: 35.6 cm (14“)
Display resolution: 2560 x 1600 pixels
HD type: WQXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Glare-free screen
Brightness: 400 cd/m²
Screen diagonal (cm): 35.6 cm
RGB color space: sRGB
Color scale: 100%
Maximum refresh rate: 144 Hz
processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor: 226V
Number of processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 4
Low Power Efficient Core: 4
Performance core maximum turbo frequency: 4.5 GHz
Low Power Efficient Core maximum turbo frequency: 3.5 GHz
Performance Base frequency of the core: 2.1 GHz
Low power efficient core base frequency: 2100 MHz
Processor cache: 8 MB
Processor Cache Type: Smart Cache
Base power consumption of the processor: 17 W
Maximum turbo power: 37 W
Neural Processing Unit (NPU)
Neural Processing Unit (NPU): Intel AI Boost
Feature: Sparsity Support
Feature: Support for Windows Studio effects
AI software frameworks supported by the NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 97 tera operations per second
NPU performance up to: 40 tera-operations per second
GPU performance up to: 53 tera operations per second
memory
Storage capacity: 16 GB
Internal memory type: LPDDR5x-SDRAM
Memory Form Factor: On the packaging
Maximum RAM: 16 GB
Storage medium
Total storage capacity: 1 TB
Storage media: SSD
Total SSD capacity: 1 TB
Number of SSDs installed: 1
SSD storage capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
graphic
Separate graphics card model: Not available
Feature: Built-in graphics adapter
Manufacturer of the integrated GPU: Intel
On-board graphics adapter family: Intel Arc Graphics
Built-in graphics card model: Intel Arc Graphics 130V
Audio
Feature: Built-in microphone
camera
Feature: Front camera
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Type of privacy: Privacy screen
network
Top WLAN standard: Wi-Fi 7 (802.11be)
WLAN standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4
Connections and interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Number of HDMI ports: 1
HDMI version: 2.1
Number of Thunderbolt 4 ports: 2
Features: Intel® Thunderbolt 4
Feature: Combined headphone/microphone jack
Feature: USB Type-C DisplayPort switching mode
Services
Repairability Index: 8.6
Keyboard
Input device: Touchpad
Feature: Backlit keyboard
Feature: Splash-proof keyboard
Keyboard layout: QWERTZ
Keyboard language: German
software
Operating system architecture: 64-bit
Test software: Microsoft 365 (30-day trial)
Installed operating system: Windows 11 Pro
Battery/accumulator
Battery technology: Lithium-ion (Li-ion)
Number of battery cells: 3
Battery capacity: 63 Wh
energy
Power supply: 65 W
Power supply frequency: 50 - 60 Hz
Power supply input voltage: 100 - 240 V
AC adapter output current: 3.25 A
Power supply output voltage: 20 V
Feature: USB Type-C charging port
Feature: USB Power Delivery
Security
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint scanner
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) Version: 2.0
Feature: Password protection
Password protection type: BIOS, HDD, User
Weight and dimensions
Width: 312 mm
Depth: 223.2 mm
Height (front): 1.49 cm
Height (rear): 1.64 cm
Weight: 1.28 kg
Packaging data
Packaging width: 410 mm
Packaging depth: 75 mm
Packaging height: 284 mm
Package weight: 1.53 kg
Scope of delivery
Feature: AC power adapter
