ASRock DESKMINI X300 AMD AM4 HDMI//DP/D-Sub USB3.1

processor
Built-in processor: No
memory
Memory type: SO-DIMM
Number of memory slots: 2
Maximum RAM: 64 GB
Supported memory speed: 2933, 3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual channel
Storage medium
Supported storage drives: HDD & SSD
Supported storage drive sizes: 2.5“, M.2
RAID Level: 0, 1
graphic
Built-in graphics adapter: No
Audio
Built-in speakers: No
network
Ethernet/LAN: Yes
Wi-Fi: No
LAN controller: Realtek RTL8111H

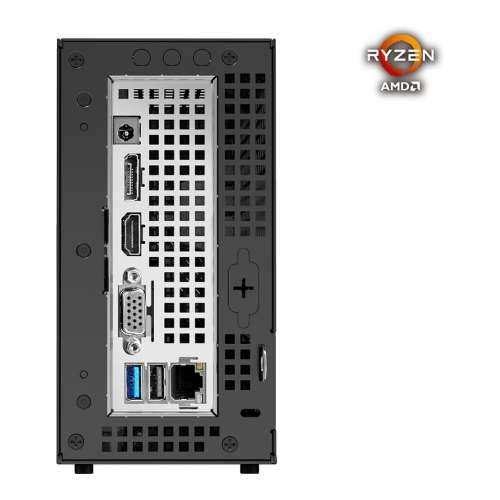

Connections and interfaces
Number of USB 2.0 ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
Number of HDMI ports: 1
Number of VGA (D-Sub) ports: 1
Number of DisplayPort connectors: 1
Microphone input: Yes
Headphone outputs: 1
Number of Ethernet LAN ports (RJ-45): 1
Direct current (DC) connection: Yes
Expansion slots
Number of M.2 (M) slots: 2
design
Case type: 1.92 l large PC
Product color: Black
On/off switch: Yes
LED indicators: Yes
Product type: Mini-PC Barebone
Services
Motherboard chipset: AMD X300
Processor socket: Socket AM4
Number of supported processors: 1
Compatible processors: AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Logistics data
Commodity tariff number (HS): 84713000
energy
Power supply type: External AC adapter
Power supply: 120 W
Power supply output voltage: 19 V
Weight and dimensions
Width: 80 mm
Depth: 155 mm
Height: 155 mm
