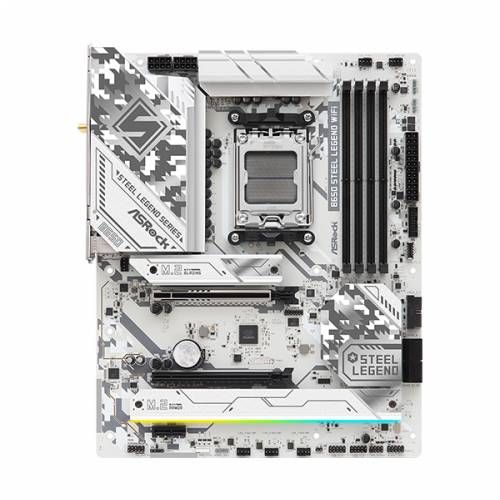

The ASRock B650 Steel Legend WiFi motherboard combines advanced features for gamers, creators, and PC enthusiasts. With support for Ryzen 7000/8000 Series processors and DDR5 memory, it establishes a foundation for a powerful system. High-speed connectivity options, including USB-C 3.2 Gen 2x2, HDMI, and DisplayPort, facilitate a versatile setup with multiple peripherals. Networking is seamless with integrated Wi-Fi 6E and Bluetooth 5.2, offering fast and reliable connections. The motherboard also delivers superior audio quality with its Realtek ALC4082 codec, ensuring an engaging listening experience. Constructed with durability in mind, it features a robust power design and high-quality components to meet the demands of high-performance computing.
| Mainboard basic features | ||
| Manufacturer | ASRock | |
| Chipset | Intel B650 | |
| Form factor | ATX | |
| BIOS Type | 256Mb AMI UEFI BIOS | |
| Mainboard processor | ||
| Processor family | AMD | |
| Processor socket | Socket AM5 | |
| Supported processors | Ryzen 8000G, Ryzen 7000 | |
| Motherboard memory | ||
| Number of DIMM slots | 4x | |
| Maximum main memory | 192GB | |
| Storage type | DDR5 | |
| Non-ECC, Un-buffered | Yes | |
| supported memory clock | up to 7200 MHz | |
| Motherboard expansion slots | ||
| PCI Express x16 (total) | 2x | |
| PCI Express 5.0 x16 | 1x | |
| PCI Express 3.0 x16 | 1x | |
| PCI Express x4 | 1x (4.0) | |
| M.2 | 3x | |
| Mainboard external connections | ||
| DisplayPort | Yes | |
| HDMI | Yes | |
| USB 3.2 Type C | 1x | |
| USB 3.1 Type A | 1x | |
| USB3.0 | 4x | |
| USB2.0 | 4x | |
| 3.5mm jack | 2x | |
| Toslink/S/PDIF (optical) | Yes | |
| Mainboard internal connections | ||
| SATA 6GB/s | 4x | |
| USB 3.1 headers | 1x (Type-C) | |
| USB 3.0 headers | 2x | |
| USB 2.0 headers | 2x | |
| TPM header | Yes | |
| Power connections | 1x 24-pin ATX, 2x 8-pin EPS12V | |
| Audio channels | 7.1 | |
| Mainboard cooling | ||
| CPU fan 4-pin | 1x | |
| Case fan 4-pin | 4x | |
| Pump 4-Pin | 1x | |
| Mainboard lighting | ||
| RGB header 4-pin | 1x | |
| ARGB header 3-pin | 3x | |
| Mainboard network | ||
| LAN Controller | 2.5GBase-T (Realtek RTL8125BG) | |
| Transfer rate | 10/100/1000/2500 Mbps | |
| WIRELESS INTERNET ACCESS | Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax) | |
| Bluetooth | 5.3 | |
| Mainboard features | ||
| USB BIOS Flashback | Yes | |
| M.2 passive cooler | 1x | |
| Diagnostic LED | Yes | |
| IO panel integrated | Yes | |
| Audio+solid capacitors | Yes | |
| Condition | ||
| Item condition | New | |
