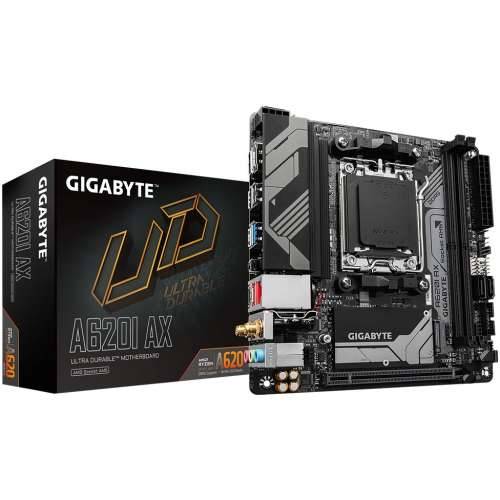

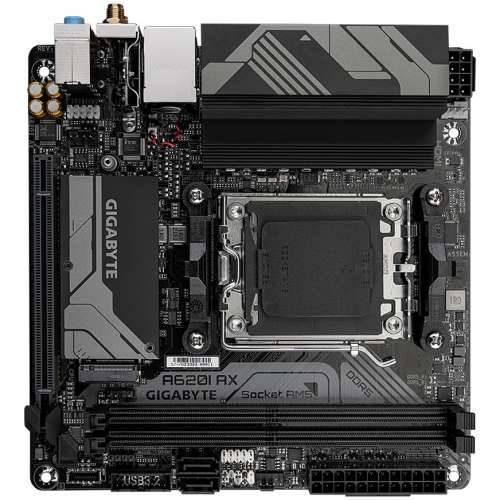

GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phase Digital VRM, up to 6400MHz DDR5 (OC), 1x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 96 GB, DDR5-SDRAM. GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phase Digital VRM, up to 6400MHz DDR5 (OC), 1x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series. Supported memory types: DDR5 SDRAM, Maximum RAM: 96 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. USB connectors: USB Type-A, USB Type-C
Podijelite:
Boost your computer“s performance with GIGABYTE“s proven motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative design and cutting-edge technology, these boards deliver outstanding performance and reliability. Whether you“re a gamer, content creator, or professional user, these series are tailored to your needs, guaranteeing excellent quality and the latest technologies.
processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processors: AMD Ryzen 7000 Series
Supported processor slots: Socket AM5
Maximum internal storage supported by the processor: 96 GB
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz
Maximum supported memory clock speed: 6400 MHz
Maximum RAM: 96 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Unbuffered memory: Yes
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum supported number of HDDs: 2
Number of supported storage drives: 3
RAID support: Yes
RAID Level: 0, 1
graphic
Parallel processing technology: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
DirectX version: 12.0
Internal I/O ports
Number of USB 2.0 ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
SATA III ports: 2
Total number of SATA ports: 2
Audio connection: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Chassis Intrusion Plug: Yes
EPS power connector (8-pin): Yes
12V power connection: Yes
RGB LED header: Yes
I/O ports on the back
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connectors: 1
DisplayPort version: 1.4
Headphone outputs: 3
Microphone input: Yes
WiFi AP antenna socket: 2
USB connectors: USB Type-A, USB Type-C
network
Ethernet/LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WiFi controller model: Realtek RTL8852CE
Bluetooth: Yes
Bluetooth version: 5.3
Features
Motherboard chipset: AMD A620
Audio channels: 7.1 channels
Product color: Brown
PC health monitoring: fan, temperature, voltage, water cooling
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 10 x64, Windows 11 x64
Expansion slots
PCI-Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) Version: 2.7
System Administration BIOS (SMBIOS) Version: 2.7
Logistics data
Country of origin: China
Quantity per shipping carton: 1 piece(s)
Battery/accumulator
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium manganese dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Packaging width: 222 mm
Packaging depth: 180 mm
Packaging height: 65 mm
Package weight: 860 g
Weight and dimensions
Width: 170 mm
Depth: 170 mm
Height: 35 mm
Scope of delivery
Included cables: SATA
Batteries/accumulators included: Yes
Included software: Norton Internet Security
Technical details
Warranty period: 3 year(s)
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processors: AMD Ryzen 7000 Series
Supported processor slots: Socket AM5
Maximum internal storage supported by the processor: 96 GB
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz
Maximum supported memory clock speed: 6400 MHz
Maximum RAM: 96 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Unbuffered memory: Yes
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum supported number of HDDs: 2
Number of supported storage drives: 3
RAID support: Yes
RAID Level: 0, 1
graphic
Parallel processing technology: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
DirectX version: 12.0
Internal I/O ports
Number of USB 2.0 ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
SATA III ports: 2
Total number of SATA ports: 2
Audio connection: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Chassis Intrusion Plug: Yes
EPS power connector (8-pin): Yes
12V power connection: Yes
RGB LED header: Yes
I/O ports on the back
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
HDMI version: 2.1
Number of DisplayPort connectors: 1
DisplayPort version: 1.4
Headphone outputs: 3
Microphone input: Yes
WiFi AP antenna socket: 2
USB connectors: USB Type-A, USB Type-C
network
Ethernet/LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WiFi controller model: Realtek RTL8852CE
Bluetooth: Yes
Bluetooth version: 5.3
Features
Motherboard chipset: AMD A620
Audio channels: 7.1 channels
Product color: Brown
PC health monitoring: fan, temperature, voltage, water cooling
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Supported Windows operating systems: Windows 10 x64, Windows 11 x64
Expansion slots
PCI-Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) Version: 2.7
System Administration BIOS (SMBIOS) Version: 2.7
Logistics data
Country of origin: China
Quantity per shipping carton: 1 piece(s)
Battery/accumulator
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium manganese dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Packaging width: 222 mm
Packaging depth: 180 mm
Packaging height: 65 mm
Package weight: 860 g
Weight and dimensions
Width: 170 mm
Depth: 170 mm
Height: 35 mm
Scope of delivery
Included cables: SATA
Batteries/accumulators included: Yes
Included software: Norton Internet Security
Technical details
Warranty period: 3 year(s)
