Digitus IP55 wall-mounted enclosure - for outdoor use - 600x600 mm (WxD), wall-mounted shelf, 100 kg, grey. Digitus IP55 wall-mounted enclosure - for outdoor use - 600x600 mm (WxD). Type: Wall-mounted shelf, Maximum weight capacity: 100 kg, International protection rating (IP code): IP55, Product color: Grey
Podijelite:

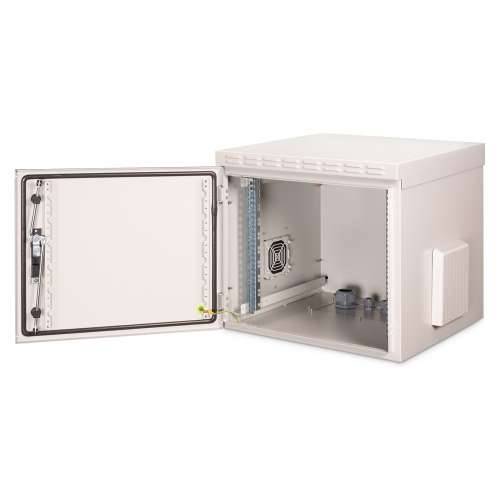

The DIGITUS® IP55 outdoor wall-mounted enclosures are designed for industrial applications. They offer protection against water and dust according to protection class IP55.
- Protected against harmful amounts of dust and water jets (IP 55)
- Steel front door with lockable swing handle and 3-point locking system

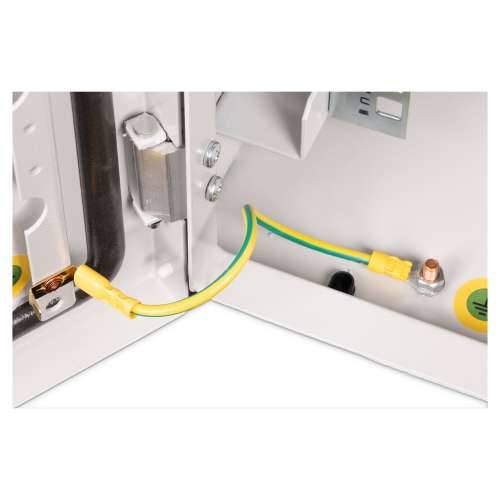

- Front door with grounding and two welded, reinforcing U-shaped beams as well as a seal
- Freestanding use with separate base possible
These industrial wall-mounted network cabinets, rated IP55, are specifically designed for harsh environments, particularly outdoor applications. Their superior performance is ensured by features such as a 3-point locking system with a lockable swing handle and insulated PG cable glands. Integrated ventilation filter housings provide fresh air intake (protection against water and dust ingress according to IP54). Application areas include outdoor locations exposed to the elements (rain, dust, hail, snow, splashing water). The roof chassis also incorporates a filtered section to accommodate a fan module. Inside, a pair of galvanized 483 mm (19“) mounting rails, marked with height units readable in both directions, are installed. These rails are depth-adjustable. Each cabinet is a robust steel construction made of sheet steel up to 2.0 mm thick. The standard color is gray (RAL 7035) achieved through electrostatic powder coating. Wall mounting is achieved using the included mounting brackets. Optionally, the cabinets can be used as freestanding units with a base or mounted to poles using a mounting kit.
- Protected against harmful amounts of dust and water jets (IP 55)
- Steel front door with lockable swing handle and 3-point locking system
- Front door with grounding and two welded, reinforcing U-shaped beams as well as a seal
- Freestanding use with separate base possible
These industrial wall-mounted network cabinets, rated IP55, are specifically designed for harsh environments, particularly outdoor applications. Their superior performance is ensured by features such as a 3-point locking system with a lockable swing handle and insulated PG cable glands. Integrated ventilation filter housings provide fresh air intake (protection against water and dust ingress according to IP54). Application areas include outdoor locations exposed to the elements (rain, dust, hail, snow, splashing water). The roof chassis also incorporates a filtered section to accommodate a fan module. Inside, a pair of galvanized 483 mm (19“) mounting rails, marked with height units readable in both directions, are installed. These rails are depth-adjustable. Each cabinet is a robust steel construction made of sheet steel up to 2.0 mm thick. The standard color is gray (RAL 7035) achieved through electrostatic powder coating. Wall mounting is achieved using the included mounting brackets. Optionally, the cabinets can be used as freestanding units with a base or mounted to poles using a mounting kit.
Features
Type: Wall-mounted shelf
Maximum weight capacity: 100 kg
Product color: Grey
Front door construction: Steel
International protection rating (IP code): IP55
Weight and dimensions
Size (Imperial): 48.3 cm (19“)
Width: 600 mm
Depth: 600 mm
Height: 600 mm
Packaging data
Packaging width: 650 mm
Packaging depth: 650 mm
Packaging volume: 265752 cm³
Package weight: 41 kg
Logistics data
UK Customs Tariff Code: 94032080
Country of origin: Türkiye
Commodity tariff number (HS): 85381000
Type: Wall-mounted shelf
Maximum weight capacity: 100 kg
Product color: Grey
Front door construction: Steel
International protection rating (IP code): IP55
Weight and dimensions
Size (Imperial): 48.3 cm (19“)
Width: 600 mm
Depth: 600 mm
Height: 600 mm
Packaging data
Packaging width: 650 mm
Packaging depth: 650 mm
Packaging volume: 265752 cm³
Package weight: 41 kg
Logistics data
UK Customs Tariff Code: 94032080
Country of origin: Türkiye
Commodity tariff number (HS): 85381000
