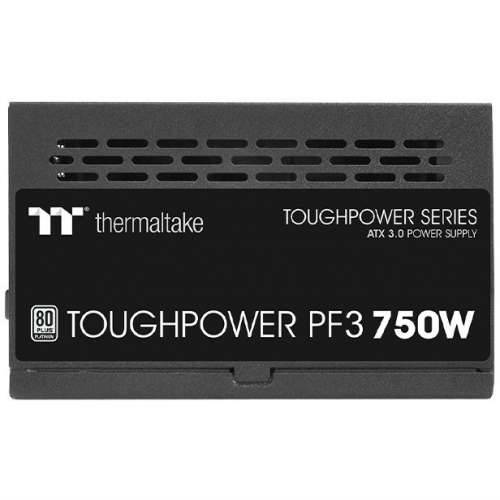

750W Thermaltake Toughpower PF3

energy
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 A
Power Factor Correction Filter (PFC): Active
Combined current (+3.3V): 100 W
Combined power (+12V): 750 W
Combined current (+5V): 100 W
Combined current (-12V): 3.6 W
Combined current (+5Vsb): 12.5 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 2.5 A
Hold time: 17 ms

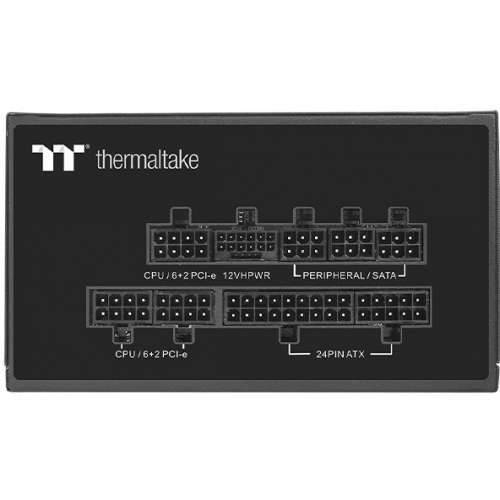

connections and interfaces
Motherboard connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 150.500 mm
Number of Molex connectors 4pin: 4
Peripheral (Molex) power cable length: 150.500 mm
Number of PCI Express power connectors 6+2pin: 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) Cable length: 600 mm
Feature: Floppy drive connector
Floppy drive cable length: 15 cm
Cable type: Fully modular
services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
ATX version: 3.0
Mean time between failures (MTBF): 100000 h
design
Product color: Black
Cooling: Active
Fan diameter: 12 cm
Number of fans: 1 fan

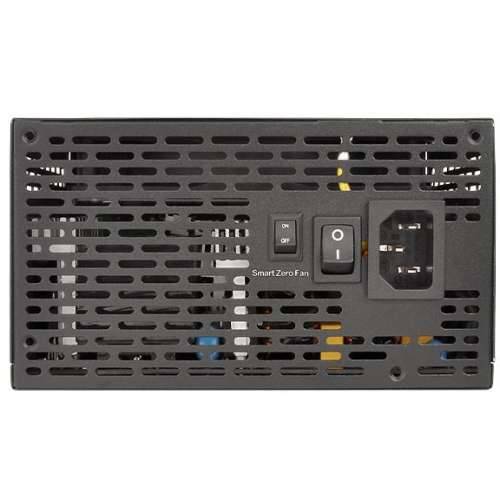

Feature: On/Off switch
operating conditions
Operating temperature: 0 - 40 °C
Storage temperature range: -40 - 70 °C
Relative humidity during operation: 5 - 85%
Humidity during storage: 5 - 95%
Safety regulation & standards
Safety: CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
