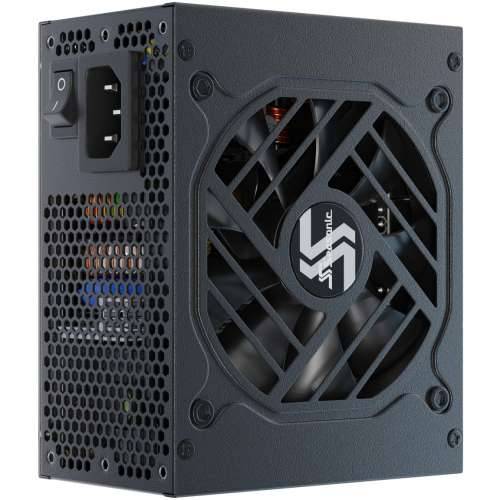

Seasonic FOCUS SGX-750 (2021), 750W, 100 - 240V, 50 - 60Hz, 10A, 5A, 100W
Seasonic FOCUS SGX-750 (2021). Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard connector plug: 20+4 pin ATX, motherboard power cable length: 35 cm, SATA power cable length: 600 mm. Purpose: PC, Power Supply Unit (PSU) Form factor: SFX, 80 Plus Certification: 80 PLUS Gold. Product color: Black, Cooling: Active, Fan diameter: 9.2 cm. Width: 125mm, Depth: 100mm, Height: 63.5mm
Podijelite:Seasonic FOCUS SGX-750 (2021). Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard connector plug: 20+4 pin ATX, motherboard power cable length: 35 cm, SATA power cable length: 600 mm. Purpose: PC, Power Supply Unit (PSU) Form factor: SFX, 80 Plus Certification: 80 PLUS Gold. Product color: Black, Cooling: Active, Fan diameter: 9.2 cm. Width: 125mm, Depth: 100mm, Height: 63.5mm
Performance
Total power: 750W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (at 110V): 10 A
Maximum input current (at 220V): 5 A
Combined power (+3.3V): 100W
Combined power (+12V): 744 W
Combined power (+5V): 100W
Combined power (-12V): 3.6W
Combined current (+5Vsb): 15W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 62 A
Max output current (+5V): 20 A
Max. output current (-12V): 0.3A
Max. output current (+5Vsb): 3 A
Connections and interfaces
Motherboard connector: 20+4 pin ATX
Number of Molex connectors 4pin: 3
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 600mm
Peripheral (Molex) power cable length: 470,700 mm
CPU connector (4+4 pin): Yes
CPU performance Cable length: 40 cm
Cable Type: Modular
Services
Purpose: PC
Power Supply Unit (PSU) Form Factor: SFX
80 Plus Certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
design
Product color: Black
Cooling: Active
Fan diameter: 9.2cm
Number of fans: 1 fan
Operating conditions
Operating temperature: 0 - 50°C
Weight and dimensions
Width: 125mm
Depth: 100mm
Height: 63.5mm
Packaging data
Packaging type: box
Logistics data
Goods tariff number (HS): 84733020
