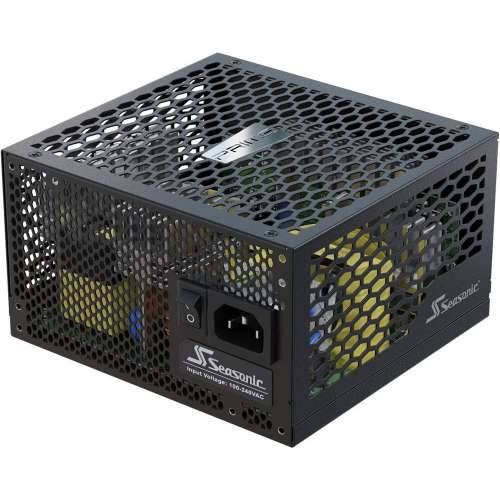

Seasonic PRIME Fanless PX, 450 W, 100-240 V, 50-60 Hz, 100 W, 444 W, 100 W. Seasonic PRIME Fanless PX. Total power: 450 W, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Motherboard connector: 20+4 pin ATX, motherboard power cable length: 61 cm, SATA power cable length: 810-860 mm. Intended use: PC, power supply unit (PSU). Form factor: ATX, 80 Plus certification: 80 PLUS Platinum. Product color: Black, cooling: Passive, fan diameter: 13.5 cm. Compliance certificates: RoHS, certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Podijelite:
energy
Total power: 450 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Combined power (+3.3V): 100 W
Combined power (+12V): 444 W
Combined power (+5V): 100 W
Combined current (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 37 A
Maximum output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overcurrent, overload, overvoltage, short circuit, undervoltage
Connections and interfaces
Motherboard connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 2
SATA power cable length: 810.860 mm
Number of Molex 4-pin connectors: 2
Peripheral (Molex) power cable length: 470.690 mm
Number of PCI Express 6+2pin power connectors: 2
PCI Express power cable length: 75 cm
CPU performance Cable length: 65 cm
CPU connector (8-pin): 2
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
Mean time between failures (MTBF): 150,000 h
design
Product color: Black
Cooling: Passive
Fan diameter: 13.5 cm
Number of fans: 1 fan
On/off switch: Yes
Operating conditions
Operating temperature: 0 - 50 °C
Certificates
Certificates of conformity: RoHS
Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Packaging type: Box
Technical details
Sustainability certificates: ENERGY STAR
Total power: 450 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Combined power (+3.3V): 100 W
Combined power (+12V): 444 W
Combined power (+5V): 100 W
Combined current (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 37 A
Maximum output current (+5V): 20 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overcurrent, overload, overvoltage, short circuit, undervoltage
Connections and interfaces
Motherboard connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 2
SATA power cable length: 810.860 mm
Number of Molex 4-pin connectors: 2
Peripheral (Molex) power cable length: 470.690 mm
Number of PCI Express 6+2pin power connectors: 2
PCI Express power cable length: 75 cm
CPU performance Cable length: 65 cm
CPU connector (8-pin): 2
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
Mean time between failures (MTBF): 150,000 h
design
Product color: Black
Cooling: Passive
Fan diameter: 13.5 cm
Number of fans: 1 fan
On/off switch: Yes
Operating conditions
Operating temperature: 0 - 50 °C
Certificates
Certificates of conformity: RoHS
Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Packaging type: Box
Technical details
Sustainability certificates: ENERGY STAR
