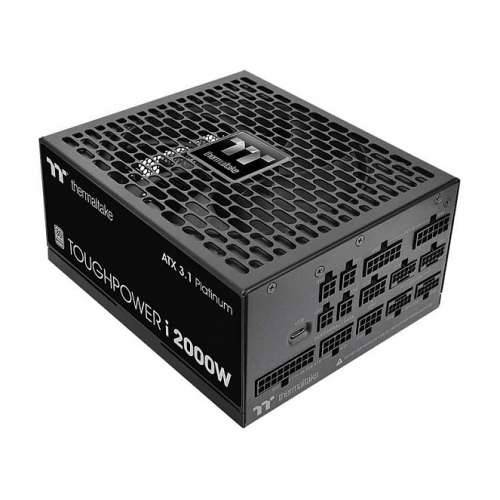

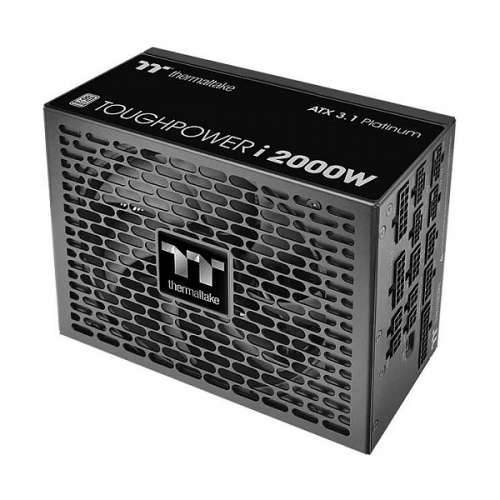

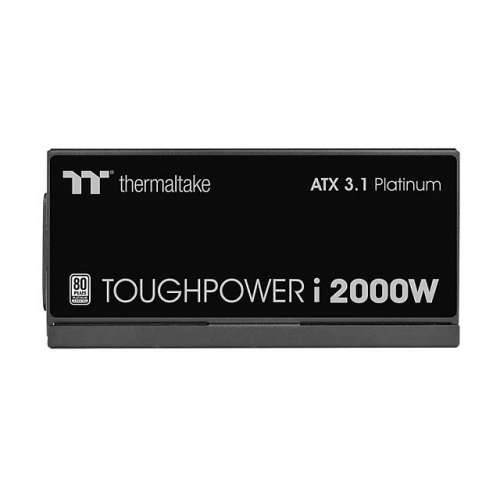

2000W Thermaltake Toughpower i2000W 80 PLUS Platinum

energy
Total power: 2000 W
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (at 220V): 15 A
Power Factor Correction Filter (PFC): Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1999.92 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 22 A
Max. output current (+12V): 166.67 A
Maximum output current (+5V): 22 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overcurrent, overvoltage, undervoltage, overload, short circuit

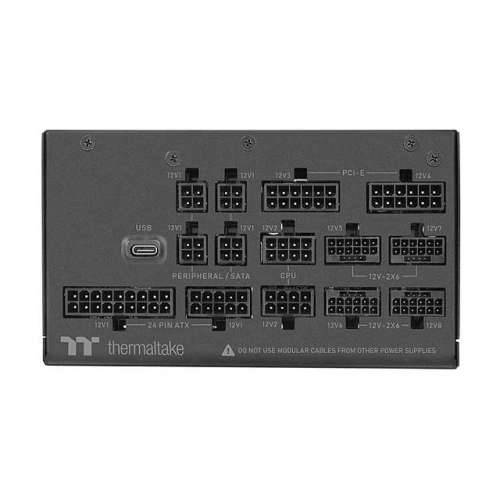

Connections and interfaces
Motherboard connector: 24-pin ATX
Motherboard power cable length: 60 cm
SATA power cable length: 500,150 mm
Number of SATA power cables: 12
Number of Molex 4-pin connectors: 8
Peripheral (Molex) power cable length: 150,500 mm
EPS power connector (4+4-pin): Yes
Number of PCI Express 6+2-pin power connectors: 8
PCI Express power connectors (12+4 pin): 4
PCI Express power connectors (12+4 pin) Cable length: 700 mm
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
ATX version: 3.1
Bearing type: FDB
Mean time between failures (MTBF): 100,000 h
design
Product color: Black

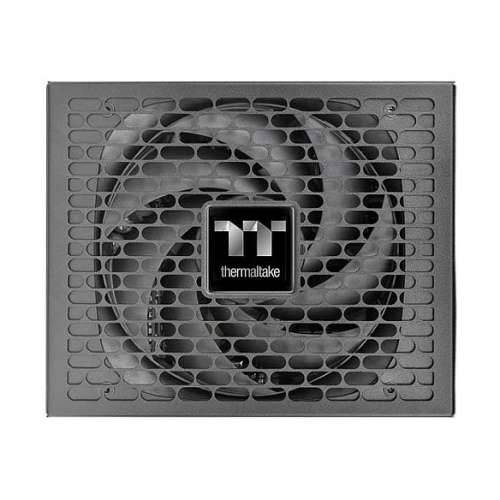

Cooling: Active
Fan diameter: 14 cm
Number of fans: 1 fan
On/off switch: Yes
Operating conditions
Operating temperature: 0 - 50 °C
Storage temperature range: -20 - 70 °C
Relative humidity during operation: 20 - 90%
Storage humidity: 5 - 95%
Weight and dimensions
Width: 150 mm
Depth: 180 mm
Height: 86 mm
