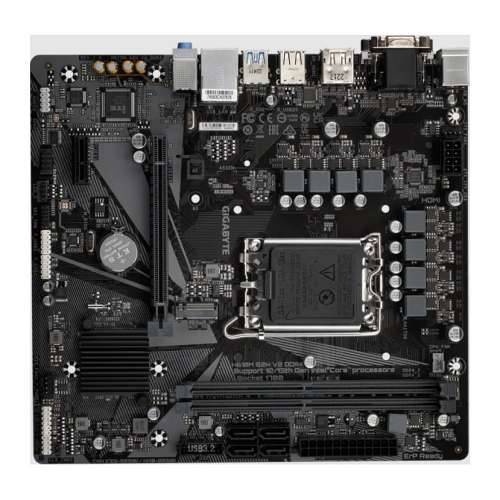

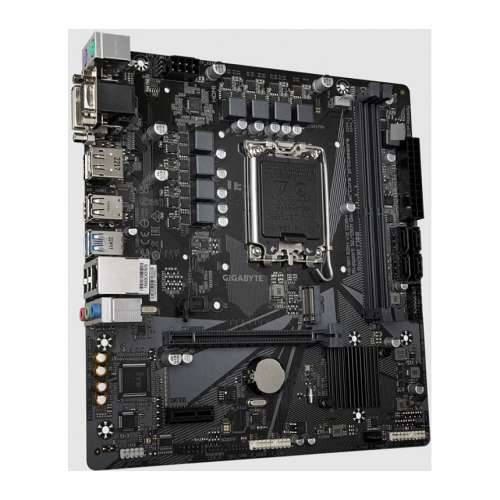

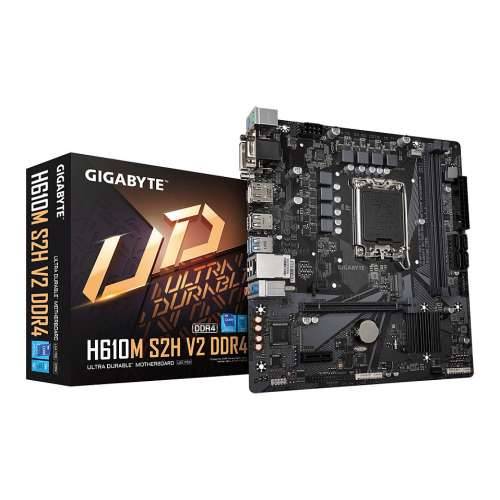

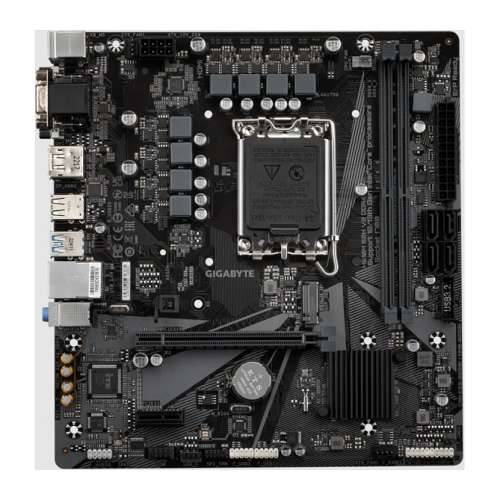

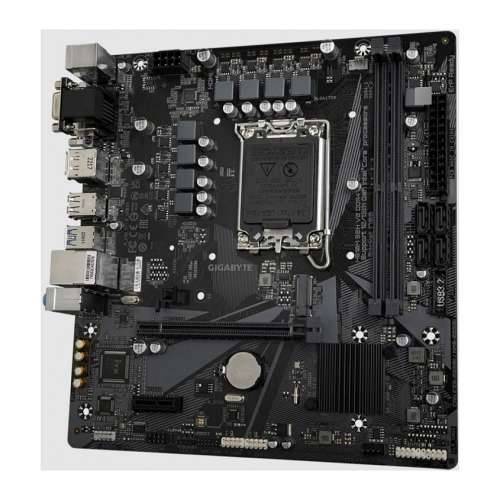

GIGABYTE H610M S2H V2 DDR4 motherboard - Supports Intel Core processors 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM GIGABYTE H610M S2H V2 DDR4 motherboard - Supports Intel Core processors 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,... Supported memory: DDR4-SDRAM, Maximum RAM: 64 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drives: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Integrated graphics card model: Intel® HD Graphics. Ethernet interface type: Gigabit Ethernet
Podijelite:
Boost your computer“s performance with GIGABYTE“s proven motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative design and cutting-edge technology, these boards deliver outstanding performance and reliability. Whether you“re a gamer, content creator, or professional user, these series are tailored to your needs, guaranteeing excellent quality and the latest technologies.
processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor slots: LGA 1700
Maximum internal storage supported by the processor: 64 GB
memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: ECC & non-ECC
Supported memory speeds: 2133, 2400, 2666, 2933, 3000, 3200 MHz
Maximum supported memory clock speed: 3200 MHz
Maximum RAM: 64 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Unbuffered memory: Yes
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA
Maximum supported number of HDDs: 4
Number of supported storage drives: 5
graphic
Built-in graphics adapter: Yes
Graphics card family: Intel
Graphics card: HD Graphics
HDCP: Yes
DirectX version: 12.0
Built-in graphics card model: Intel® HD Graphics
Internal I/O ports
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM ports: 1
TPM connection: Yes
Serial port headers: 1
12V power connection: Yes
RGB LED header: Yes
I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 2
Number of VGA (D-Sub) ports: 1
Number of HDMI ports: 1
Number of DVI-D ports: 1
Number of DisplayPort connectors: 1
Headphone outputs: 1
Microphone input: Yes
network
Ethernet/LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Features
Motherboard chipset: Intel H610 Express
Audio channels: 7.1 channels
Product color: Brown
PC health monitoring: fan, LED, temperature, voltage, water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling: Active
Power source: ATX
Supported Windows operating systems: Windows 10 x64, Windows 11 x64
Expansion slots
PCI-Express x1 slots: 1
PCI-Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) Version: 2.7
System Administration BIOS (SMBIOS) Version: 2.7
Logistics data
Country of origin: China
Quantity per shipping carton: 1 piece(s)
Battery/accumulator
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium manganese dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Packaging width: 265 mm
Packaging depth: 265 mm
Packaging height: 54 mm
Package weight: 857 g
Weight and dimensions
Width: 230 mm
Depth: 215 mm
Height: 35 mm
Scope of delivery
Batteries/accumulators included: Yes
Included software: Norton® Internet Security (OEM version) LAN bandwidth management software
Other functions
Supported DIMM module capacities: 8GB, 16GB
Technical details
Warranty period: 3 year(s)
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor slots: LGA 1700
Maximum internal storage supported by the processor: 64 GB
memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: ECC & non-ECC
Supported memory speeds: 2133, 2400, 2666, 2933, 3000, 3200 MHz
Maximum supported memory clock speed: 3200 MHz
Maximum RAM: 64 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Unbuffered memory: Yes
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA
Maximum supported number of HDDs: 4
Number of supported storage drives: 5
graphic
Built-in graphics adapter: Yes
Graphics card family: Intel
Graphics card: HD Graphics
HDCP: Yes
DirectX version: 12.0
Built-in graphics card model: Intel® HD Graphics
Internal I/O ports
Number of USB 2.0 ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
SATA III ports: 4
Total number of SATA ports: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM ports: 1
TPM connection: Yes
Serial port headers: 1
12V power connection: Yes
RGB LED header: Yes
I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 2
Number of VGA (D-Sub) ports: 1
Number of HDMI ports: 1
Number of DVI-D ports: 1
Number of DisplayPort connectors: 1
Headphone outputs: 1
Microphone input: Yes
network
Ethernet/LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Features
Motherboard chipset: Intel H610 Express
Audio channels: 7.1 channels
Product color: Brown
PC health monitoring: fan, LED, temperature, voltage, water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling: Active
Power source: ATX
Supported Windows operating systems: Windows 10 x64, Windows 11 x64
Expansion slots
PCI-Express x1 slots: 1
PCI-Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) Version: 2.7
System Administration BIOS (SMBIOS) Version: 2.7
Logistics data
Country of origin: China
Quantity per shipping carton: 1 piece(s)
Battery/accumulator
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium manganese dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Packaging width: 265 mm
Packaging depth: 265 mm
Packaging height: 54 mm
Package weight: 857 g
Weight and dimensions
Width: 230 mm
Depth: 215 mm
Height: 35 mm
Scope of delivery
Batteries/accumulators included: Yes
Included software: Norton® Internet Security (OEM version) LAN bandwidth management software
Other functions
Supported DIMM module capacities: 8GB, 16GB
Technical details
Warranty period: 3 year(s)
