ASUS PRIME B760M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory: DDR5-SDRAM, Maximum RAM: 128 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Podijelite:
B760M-A-CSM
ASUS Prime series motherboards are expertly designed to unlock the full potential of 13th Gen Intel® Core™ processors. Featuring a robust performance design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A-CSM offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to deliver stable and reliable motherboards. We offer up to 36 months of product lifecycle support and a 6-month end-of-life notice period to give businesses ample time to prepare for product transitions. ASUS Control Center Express, server-grade IT management software, is included with every ASUS CSM motherboard purchase.
* Lifecycle support, program offerings, and delivery status may vary by region. Please contact your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to accelerate deployment, simplify IT operations, and improve productivity through comprehensive control and user-friendly features. Compatible with over 100 ASUS motherboards, ASUS Control Center Express offers a high-quality, TCO-optimized solution for business needs.
ASUS Prime series motherboards are expertly designed to unlock the full potential of 13th Gen Intel® Core™ processors. Featuring a robust performance design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A-CSM offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to deliver stable and reliable motherboards. We offer up to 36 months of product lifecycle support and a 6-month end-of-life notice period to give businesses ample time to prepare for product transitions. ASUS Control Center Express, server-grade IT management software, is included with every ASUS CSM motherboard purchase.
* Lifecycle support, program offerings, and delivery status may vary by region. Please contact your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to accelerate deployment, simplify IT operations, and improve productivity through comprehensive control and user-friendly features. Compatible with over 100 ASUS motherboards, ASUS Control Center Express offers a high-quality, TCO-optimized solution for business needs.
processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor slots: LGA 1700
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum supported memory clock speed: 7200 MHz
Maximum RAM: 128 GB
Feature: Unbuffered memory
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 6
graphic
Parallel processing technology: Not supported
Internal I/O ports
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
SATA III ports: 4
Feature: S/PDIF from connector
Feature: Front panel audio plug
Feature: Front panel connector
Feature: ATX power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of COM ports: 1
Feature: TPM connection
Feature: 12V power connection
Feature: RGB LED pin header

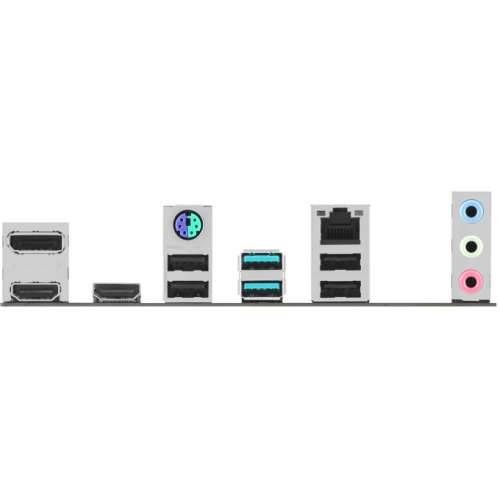

I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 1
Number of HDMI ports: 2
Number of DisplayPort connectors: 1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone input
WiFi AP antenna socket: 1
network
Feature: Ethernet/LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Features
Motherboard chipset: Intel B760
Audio channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Supported Windows operating systems: Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 slots (Gen 4.x): 3
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Feature: Clear CMOS button
Packaging data
Packaging width: 270 mm
Packaging depth: 263 mm
Packaging height: 52 mm
Package weight: 1.14 kg
Weight and dimensions
Width: 244 mm
Depth: 244 mm
Height: 40 mm
Scope of delivery
Included cables: SATA
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor slots: LGA 1700
memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory type: DIMM
Memory channels: Dual channel
ECC compatibility: Non-ECC
Supported memory speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum supported memory clock speed: 7200 MHz
Maximum RAM: 128 GB
Feature: Unbuffered memory
Memory controller
Supported storage drives: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Maximum supported number of HDDs: 4
Number of supported storage drives: 6
graphic
Parallel processing technology: Not supported
Internal I/O ports
Number of USB 2.0 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
SATA III ports: 4
Feature: S/PDIF from connector
Feature: Front panel audio plug
Feature: Front panel connector
Feature: ATX power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of COM ports: 1
Feature: TPM connection
Feature: 12V power connection
Feature: RGB LED pin header
I/O ports on the back
Number of USB 2.0 ports: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 2
Number of Ethernet LAN ports (RJ-45): 1
Number of PS/2 ports: 1
Number of HDMI ports: 2
Number of DisplayPort connectors: 1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone input
WiFi AP antenna socket: 1
network
Feature: Ethernet/LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Features
Motherboard chipset: Intel B760
Audio channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Supported Windows operating systems: Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 slots (Gen 4.x): 3
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Feature: Clear CMOS button
Packaging data
Packaging width: 270 mm
Packaging depth: 263 mm
Packaging height: 52 mm
Package weight: 1.14 kg
Weight and dimensions
Width: 244 mm
Depth: 244 mm
Height: 40 mm
Scope of delivery
Included cables: SATA
