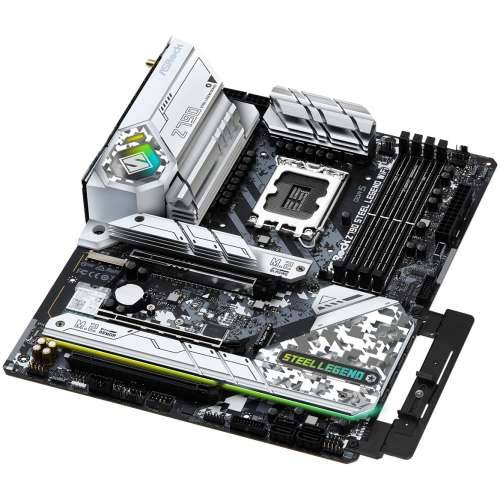

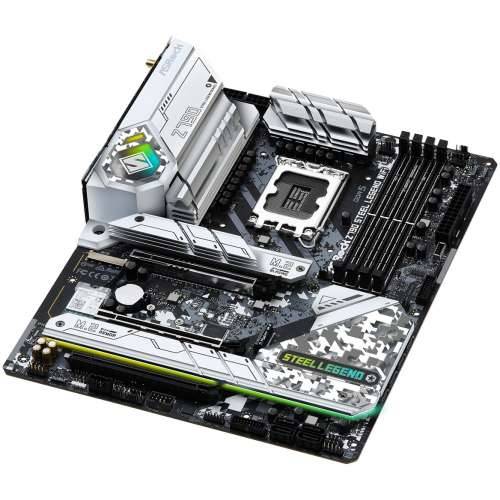

1700 ASRock Z790 STEEL LEGEND WIFI

processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors: 1

Storage
Supported memory: DDR5-SDRAM
Number of memory slots: 4
RAM memory maximum: 128 GB
RAM type: DIMM
Memory Channels: Dual Channel
Without ECC: Yes
Unbuffered memory: Yes

Storage controller
Supported storage drive interfaces: M.2, SATA III
Supported storage drives: HDD & SSD
RAID support: Yes
RAID levels: 0, 1, 5, 10

Internal I/O ports
Number of USB 2.0 interfaces: 2
USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Ports: 1
SATA III ports: 8
Front panel audio plug: Yes
ATX power connector (24-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
Thunderbolt headers: 1
RGB LED header: Yes

Rear I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 8
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports: 1
Number of Ethernet LAN ports (RJ-45): 1
Number of HDMI ports: 1
Number of DisplayPort connections: 1
DisplayPorts version: 1.4
Headphone outputs: 1
Microphone input: Yes
S/PDIF output: Yes

network
WiFi: Yes
Built-in Ethernet port: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN Controller: Dragon RTL8125BG
Top WLAN standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth: Yes

characteristics
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel Z790
Audio Channels: 7.1 channels
Audio chip: Realtek ALC897
Supports Windows operating systems: Windows 10 x64, Windows 11 x64

Expansion slots
PCI Express x16 (Gen 3.x) connectors: 1
PCI Express x16 slots (Gen 4.x): 1
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 1

BIOS
BIOS Type: UEFI AMI
BIOS memory size: 256 Mbit

Weight and dimensions
Width: 305mm
Depth: 244mm
