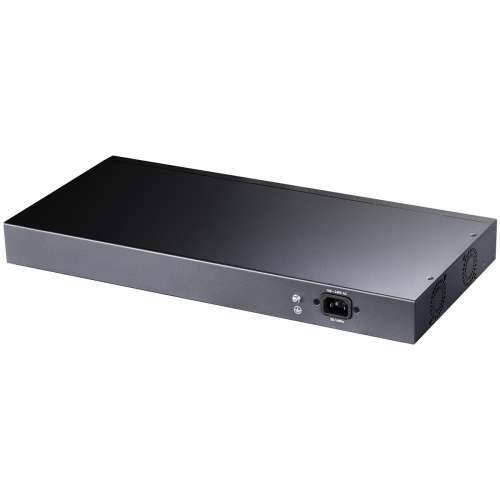

16+2P Cudy GS1020PS2 PoE+ SFP

connections and interfaces
Number of base-switching RJ-45 Ethernet ports: 16
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Number of installed SFP modules: 2
Number of combo SPF ports: 2
Number of fiber optic uplink ports: 2
Power plug: AC input jack
network
Network standard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
Supported cable types: Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
Feature: Auto-scanning
Feature: VLAN support
optical fiber
Optical module switching type: Gigabit Ethernet
Fiber type: Multi-mode
Transmission distance (max): 120 km
Maximum transmission distance (single mode): 120000 m
Maximum transmission distance (multi-mode): 2000 m
data transfer
Transfer rate: 38.7 Mpps
MAC address table: 8000 entries
Data packet buffer memory: 4 MB
design
Feature: Rack installation
Product color: Black
Housing material: metal
LED indicators: activity, link, power
Airflow direction: Airflow side to side
services
Mean time between failures (MTBF): 50000 h
energy
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 52 V
Output current: 3.85 A
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Number of Power over Ethernet (PoE) ports: 16
Number of Power over Ethernet plus (PoE+) ports: 16
Power over Ethernet (PoE) power per port: 30 W
Total power Power over Ethernet (PoE): 200 W
Other functions
Bandwidth: 52 Gbit/s
operating conditions
Operating temperature: -20 - 50 °C
Storage temperature range: -40 - 80 °C
Relative humidity during operation: 10 - 90%
Humidity during storage: 5 - 95%
Altitude during operation: 0 - 3000 m
scope of delivery
Supplied cables: AC
Feature: Rack mounting kit
