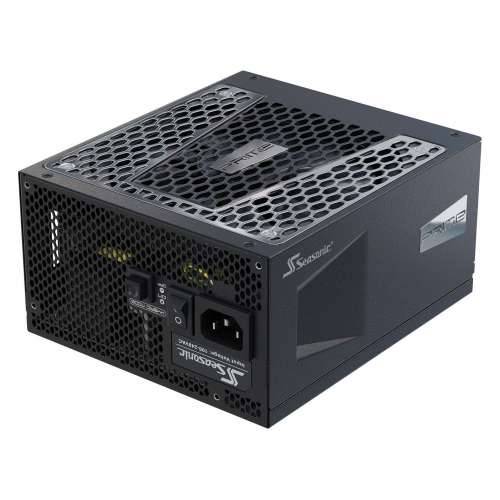

1300W Seasonic Prime TX 1300 80+ Titanium

energy
Total power: 1300 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 15 - 7.5 A
Combined power (+3.3V): 125 W
Combined power (+12V): 1296 W
Combined power (+5V): 125 W
Combined current (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 25 A
Max. output current (+12V): 108 A
Maximum output current (+5V): 25 A
Max. output current (-12V): 0.3 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overcurrent, overvoltage, short circuit

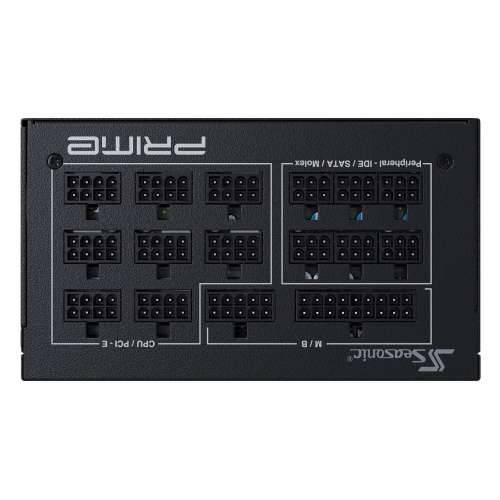

Connections and interfaces
Motherboard connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 14
Number of Molex 4-pin connectors: 5
CPU connector (4+4 pin): Yes
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
Bearing type: FDB
Mean time between failures (MTBF): 150,000 h
design
Product color: Black

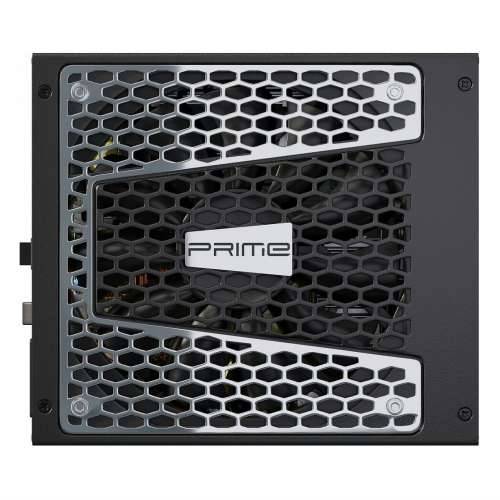

Cooling: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan
On/off switch: Yes
Operating conditions
Operating temperature: 0 - 50 °C

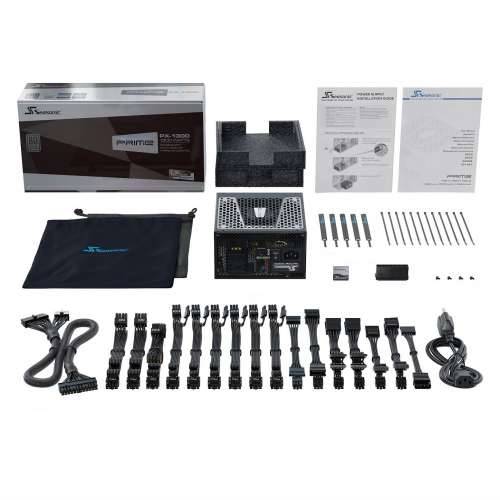

Scope of delivery
Included cables: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Cable ties included: Yes
Certificates
Certificates of conformity: RoHS
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight and dimensions
Width: 150 mm
Depth: 210 mm
Height: 86 mm
Packaging data
Packaging type: Box
