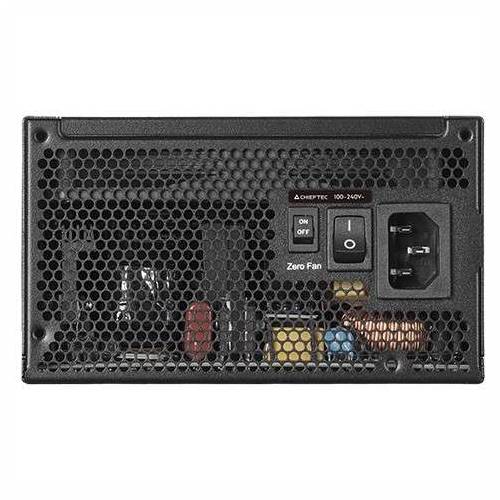

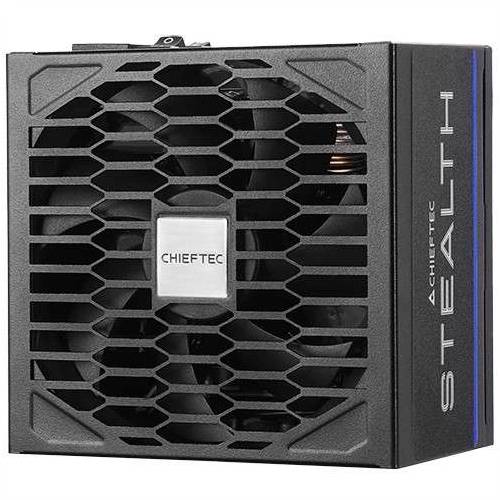

Chieftec Stealth Series SPX-1200-FC Power Supply, Black, 1200 W, 100-240 V, 50/60 Hz, 15.0-7.5 A, Active. Total power: 1200 W, AC input voltage: 100-240 V, AC input frequency: 50/60 Hz. Motherboard connector: 24-pin ATX, motherboard power cable length: 60 cm, SATA power cable length: 150 mm. Intended use: PC, power supply unit (PSU). Form factor: ATX, 80 Plus certification: 80 PLUS Platinum. Product color: Black, cooling: Active, fan diameter: 13.5 cm. Width: 150 mm, depth: 140 mm, height: 86 mm.
Podijelite:
The CHIEFTEC Stealth Series power supply was designed according to the ATX 12V 3.1 standard by Intel.
It is designed and supports PCIe Gen5 with 80 PLUS Platinum certified efficiency.
It offers the first-class performance and stability that high-end systems require.
A competitive price-performance ratio up to 1200W is the focus, without compromises in
of proven CHIEFTEC quality.
The Stealth series features an LLC half-bridge converter and DC-to-DC technology.
equipped to ensure higher energy efficiency and a stable power supply.
Japanese quality capacitors ensure longevity and reliability.

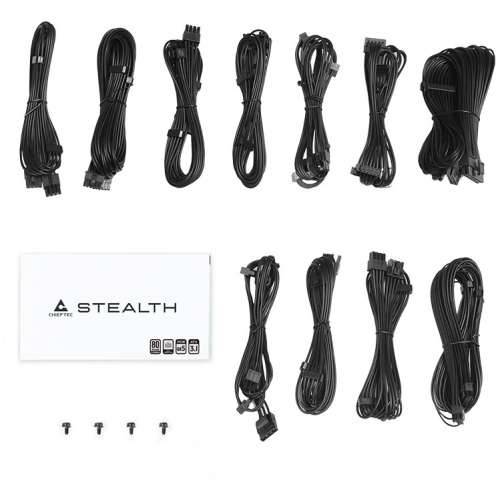

The fully modular design with long, ultra-soft embossed cables makes it easier to
Cable management reduces clutter and simplifies installation.
A quiet 135mm FDB (Fluid Dynamic Bearing) fan also ensures optimal performance.
Balance between cooling performance and noise level. The Stealth series is your reliable choice.
A choice for all computing requirements with all necessary modern protection and
Security features.
It is designed and supports PCIe Gen5 with 80 PLUS Platinum certified efficiency.
It offers the first-class performance and stability that high-end systems require.
A competitive price-performance ratio up to 1200W is the focus, without compromises in
of proven CHIEFTEC quality.
The Stealth series features an LLC half-bridge converter and DC-to-DC technology.
equipped to ensure higher energy efficiency and a stable power supply.
Japanese quality capacitors ensure longevity and reliability.
The fully modular design with long, ultra-soft embossed cables makes it easier to
Cable management reduces clutter and simplifies installation.
A quiet 135mm FDB (Fluid Dynamic Bearing) fan also ensures optimal performance.
Balance between cooling performance and noise level. The Stealth series is your reliable choice.
A choice for all computing requirements with all necessary modern protection and
Security features.
energy
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15.0-7.5 A
Power Factor Correction Filter (PFC): Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 100 A
Maximum output current (+5V): 20 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overvoltage, overload protection, short circuit, overvoltage and inrush current, undervoltage
Connections and interfaces
Motherboard connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 150,500 mm
Number of SATA power cables: 10
Number of Molex 4-pin connectors: 2
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
Number of PCI Express 6+2-pin power connectors: 3
PCI Express power cable length: 65 cm
Feature: ATX power connector (24-pin)
Feature: PCI Express connector
Number of EPS connectors: 1
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
ATX version: 3.1
Bearing type: FDB
design
Product color: Black
Cooling: Active
Fan diameter: 13.5 cm
Weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Packaging type: Box
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15.0-7.5 A
Power Factor Correction Filter (PFC): Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Max. output current (+3.3V): 20 A
Max. output current (+12V): 100 A
Maximum output current (+5V): 20 A
Max. output current (+5Vsb): 3 A
Energy protection features: Overvoltage, overload protection, short circuit, overvoltage and inrush current, undervoltage
Connections and interfaces
Motherboard connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 150,500 mm
Number of SATA power cables: 10
Number of Molex 4-pin connectors: 2
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
Number of PCI Express 6+2-pin power connectors: 3
PCI Express power cable length: 65 cm
Feature: ATX power connector (24-pin)
Feature: PCI Express connector
Number of EPS connectors: 1
Cable type: Fully modular
Services
80 Plus Certification: 80 PLUS Platinum
Purpose: PC
Power Supply Unit (PSU) Form Factor: ATX
ATX version: 3.1
Bearing type: FDB
design
Product color: Black
Cooling: Active
Fan diameter: 13.5 cm
Weight and dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Packaging type: Box
